Everything You Need to Know About Carbide Reamers

Irvine, California, U.S.A - Mannheim, Germany

A Complete Guide to Carbide Reamers

Precision. Performance. Perfection. These three principles encapsulate the essence of carbide reamer bits and their application in industries that require precision in the sub-micrometer range. Whether you're a machinist, engineer, or just curious why reamers matter, understanding carbide reamers should be of interest. We aim to familiarize you with carbide reamers by offering insights on what they are, their design and function, their advantages, how they compare to other machining tools (like carbide milling tools), and a look at how a reamer is manufactured.

What Are Carbide Reamers?

Carbide reamers are rotary cutting tools that are made of tungsten carbide, a material known for its extreme hardness and resistance to heat and wear. Carbide reamers are tools that are used to enlarge or finish existing holes to precision sizes with tight tolerances and surface finishes that cannot be achieved by drilling alone. Reaming isn't just about making holes larger; it is about making holes perfect.

Why Use Carbide Instead of High-Speed Steel (HSS)?

Good question. While HSS reamers are cheaper and still widely used, carbide reamers outperform them in durability, heat resistance, and cutting speed.

Key advantages of carbide over HSS:

Higher Wear Resistance: Carbide lasts longer, especially in high-volume production.
Better Surface Finish: Produces smoother internal hole surfaces.
Maintains Sharpness Longer: Reduces the need for frequent re-sharpening.
Withstands Higher Speeds and Feeds: Ideal for automated and high-speed machining environments.

So, while carbide tools may cost more upfront, they deliver more value over time.

Applications of Carbide Reamers

Carbide reamers are widely used across sectors such as:

Aerospace: For precision bores in engine components.
Automotive: Creating smooth, accurate cylinder bores and valve guides.
Medical Equipment: For surgical instruments requiring ultra-precise holes.
Die & Mold Making: Where dimensional accuracy is non-negotiable.

Basically, anywhere a flawless finish and tight tolerance are required, carbide reamers shine.

How Carbide Reamers Work

Reamers do the job of cutting a small quantity of material from a pre-drilled hole. Carbide reamers possess several cutting edges (or flutes) that scrape away material as it rotates to produce a better shape and finish in the hole. The cutting action sees slight scraping of material to "tune", usually by 0.1 to 0.3 mm in diameter. Think of it as polishing a diamond.

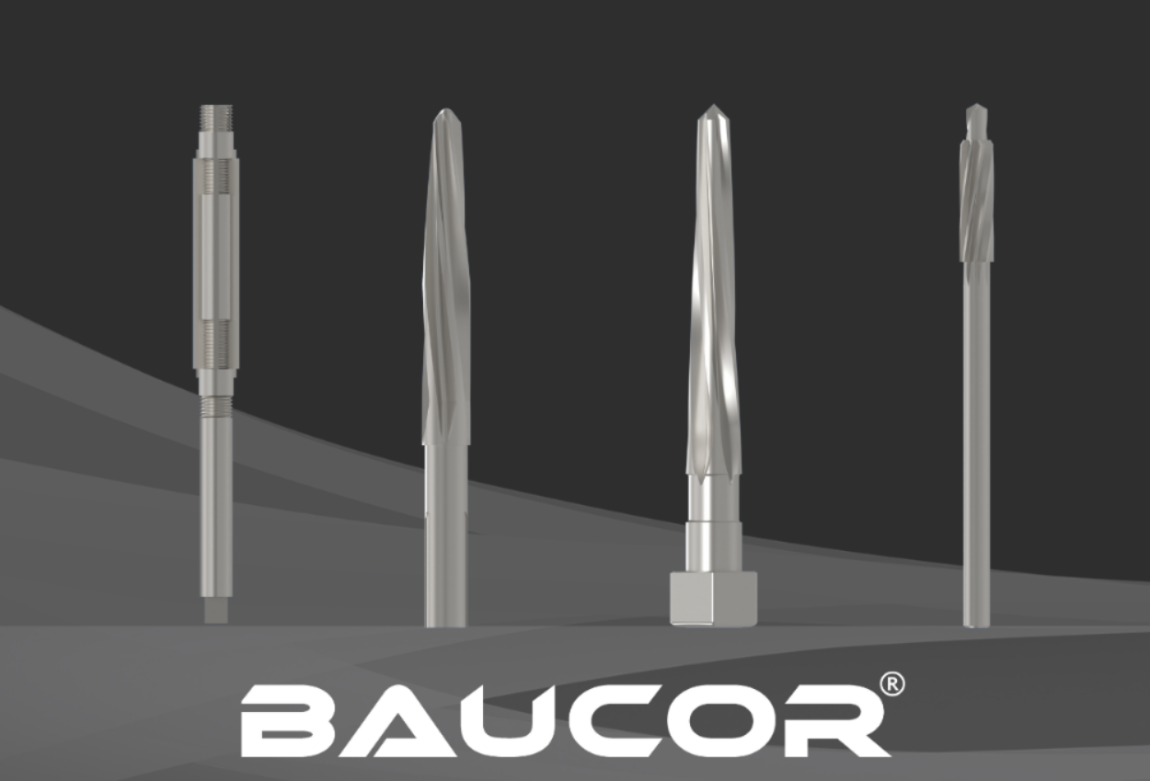

Types of Carbide Reamers

There are several variations of carbide reamers depending on the job:

1. Straight Flute Reamers

Best for through-holes and general-purpose reaming.
Suitable for rigid setups with minimal chip evacuation issues.

2. Spiral Flute Reamers

Ideal for blind holes.
Excellent chip evacuation and reduced chatter.

3. Tapered Reamers

Used to create tapered holes.
Common in tool & die making and orthopedic implants.

4. Adjustable Carbide Reamers

Allow diameter adjustment.
Handy when tight tolerances need custom tweaking.

Choosing the right type depends on your specific application and material.

A Peek into Reamer Manufacturing

Making a carbide reamer is a complex task that blends engineering precision and advanced technology.

Key steps include:

1. Material Selection: High-grade tungsten carbide powder is selected.

2. Powder Compaction: The powder is compressed into shape using molds.

3. Sintering: The formed blank is heated at high temperatures to fuse particles.

4. Precision Grinding: Flutes and cutting edges are ground to exact specifications.

5. Coating (Optional): Coatings like TiN or TiAlN are applied for extra heat resistance and wear protection.

6. Quality Testing: Every tool is checked for dimensional accuracy and surface finish.

Modern reamer manufacturing uses CNC grinding, 5-axis machinery, and laser measurement systems to achieve extreme precision, down to microns.

Best Practices for Using Carbide Reamers

To get the most out of your reamers:

Pre-Drill Correctly: The hole should be 0.2 to 0.5 mm smaller than the final diameter.
Use Lubrication: Coolant reduces heat and extends tool life.
Maintain Feed Rate: Too fast or too slow can result in poor surface finish.
Clean the Hole Before Reaming: Chips left in the hole can damage the reamer.
Inspect Often: Regular checks prevent breakage and maintain tolerances.

When Should You Replace a Carbide Reamer?

Despite their durability, carbide reamers don’t last forever. Here are signs it’s time for a replacement:

Increased surface roughness
Change in hole size or roundness
Unusual noises or vibrations
Tool chipping or breakage

Don’t push them too far; compromised tooling can damage your part or machinery.

Why Carbide Reamers Are a Game-Changer in Precision Machining

In manufacturing ultra-precise hole finishing, when it comes to finish machining, carbide reamers are simply the tool of choice. Carbide reamers manufactured with tungsten carbide, or cemented carbide, are incredibly hard, with excellent heat resistance and very long wearing when cutting. Therefore, carbide reamers are preferred in high-volume, high-speed applications. Unlike previous generations of High-Speed Steel (HSS) reamers, which were manufactured with HSS and had to be resharpened in order to offer consistent new tool performance, carbide reamers come extremely close to retaining the integrity of the cutting edge far longer than older generation HSS reamers. Carbide reamers are popular in high-speed, high-volume applications and are also frequently used in the aerospace, automotive, and medical industries where micrometer-level accuracy is necessary in pre-drilling hole tolerances. In these applications, carbide reamers can deliver surface finish, roundness, and dimensional tolerance improvements by reaming pre-drilled holes to specific tolerances. Furthermore, carbide reamers also successfully work with carbide milling tools, which are used to shape and profile components before the ream stage. Both tools work together to form the basic structure of today's CNC machining capabilities. Thanks to changes in the technology and materials used for manufacturing reamer tools, today's carbide reamers are more precise and more efficient than years past, delivering perfect holes, each and every time.

Final Thoughts

No matter whether you are making reamers for a living, dealing with high-precision machining, or just finding better tools for the job, carbide reamers are your best option when it is time to get more precision. Carbide reamers durability, finish quality, and high performance under pressure make them necessary for modern machining.

And while they are not carbide milling tools, they are categorized and used alongside carbide milling tools for productive and accurate machining execution.

So, next time your machining operation focuses on ultra-fine finishing, just remember: nothing works like carbide reamers or simply get a quote with Baucor for a seamless procedure.
