Quality Control

• Dimensional Checks: Using micrometers, calipers, and optical comparators to ensure the tool's dimensions and angles meet specifications.
• Surface Finish: Inspection for smooth surfaces and consistent coatings.
• Hardness Testing: Methods like the Rockwell Hardness scale assess the tool's resistance to deformation.

Here's a more detailed look at how the different parts of a drill chamfer tool might be manufactured:

• Drill Bit: Forged or CNC milled from the selected material, followed by flute grinding and sharpening.
• Chamfer Cutter: CNC milled into the desired angle and diameter, with precision grinding for a sharp cutting edge.
• Shank: CNC milled to fit standard drill chucks or tool holders.

Combination Drill and Chamfer Bits

Drill Bit Body:

• High-Speed Steel (HSS): Most common, offering a good balance of hardness, toughness, and affordability.
• Cobalt High-Speed Steel (HSS-Co): For heavy-duty use and harder materials, provides greater wear resistance and heat tolerance.

Chamfering Cutters

• HSS or HSS-Co: Same as above for consistency and ease of manufacturing.
• Carbide-Tipped: For longer tool life in demanding applications or very hard materials.

Post-Drilling Chamfering Tools

Tool Body:

• HSS or HSS-Co: Provides strength and durability.
• Carbon Steel: May be used in lower-cost options.
• Cutting Edges:


• HSS or HSS-Co: The most common choice.
• Carbide-Tipped: For very hard materials or extremely high-volume usage, offering superior wear resistance.

Less Common or Specialized Materials

• Solid Carbide: Occasionally used for very small, precision chamfering tools due to carbide's extreme hardness and ability to hold a sharp edge.
• Tool Steels: Some tool steel grades could offer greater hardness but are less common due to cost and machining difficulty.

Choosing the Right Material at Baucor

Most DIYers and professionals will be well-served by HSS or HSS-Co tools for both combination and post-drilling chamfering. Consider carbide-tipped options for:

• Hard Materials: Chamfering hardened steels or other very hard alloys
• High-Volume Production: Where extended tool life is essential

Coatings for Combination Drill/Chamfer Bits

• Black Oxide: A basic coating that provides some corrosion resistance and improved lubricity. Found on lower-cost tools.
• Titanium Nitride (TiN): A gold-colored coating that increases surface hardness, reduces friction, and extends the lifespan of the tool.
• Titanium Aluminum Nitride (TiAlN): A darker coating, offering even greater hardness and heat resistance than TiN. Provides longer life in demanding applications.

Coatings for Post-Drilling Chamfering Tools

• Coatings mentioned above (TiN, TiAlN) Can be used on the cutting edges to improve wear resistance and lifespan.

Less Common, Specialized Coatings

• Titanium Carbonitride (TiCN): A versatile coating with excellent hardness and wear resistance. Often a grayish-blue color.
• Chrome Nitride (CrN): Provides superior corrosion resistance and good wear protection.
• Diamond-Like Carbon (DLC): Extremely hard and wear-resistant. Primarily used in high-end specialty tooling due to its cost.

Choosing the Right Coating

• Material Hardness: Match the coating to the types of material you'll be chamfering. Harder coatings offer advantages when working with harder metals.
• Usage Frequency: If you use chamfering tools regularly or in a professional setting, premium coatings can extend tool life considerably.
• Budget: Coatings add cost. Consider if the potential benefits justify the price increase for your needs.

The Importance of Quality and Design

Remember, a premium coating can't compensate for a poorly made chamfer tool. Always prioritize a high-quality tool with precise geometry and a sharp cutting edge.

Manufacturing and Machining

• Streamlines production processes by drilling and chamfering holes in a single operation.
• Improves efficiency and reduces tool changeovers.

Metalworking:

Creates chamfers on drilled holes in various metal components for smooth edges, deburring, and preparing for fasteners or assembly.

• Woodworking (Less Common):
• Can be used to create pilot holes and chamfers for countersunk screws in a single step, though countersink bits are more common for wood.

Post-Drilling Chamfering Tools

Metalworking:

• Deburring and chamfering a wide range of hole sizes in metal parts, removing sharp edges, and improving surface finish.
• Common in fabrication shops and manufacturing facilities.

Automotive and Aerospace:

• Chamfering holes for fasteners to ensure flush fit, smooth operation, and to meet specific tolerances.

Plumbing and Electrical:

Deburring and chamfering the ends of pipes and conduit for cleaner connections, smoother flow, and to prevent injuries.

DIY and Home Improvement:

• Used by hobbyists and DIYers for deburring and adding a professional touch to various metalworking and fabrication projects.

Why Use Drill Chamfer Tools

• Efficiency: Combining drilling and chamfering (if applicable) saves time and effort.
• Cleanliness: Creates smooth, burr-free edges on holes.
• Safety: Removes sharp edges that can cause cuts or injuries.
• Aesthetics: Improves the overall look and finish of a workpiece for a professional appearance.
• Functionality: Ensures flush fitting of fasteners or smooth transitions in assemblies.

Industries Using Both Tool Types

• Manufacturing: Employed in various manufacturing sectors where precision holes and smooth, burr-free edges are required on components and products.
• Metalworking: Used extensively for deburring, chamfering, and preparing drilled holes in metal fabrication, machining, and assembly processes.
• Automotive and Aerospace: Employed for creating precise chamfers on holes for fasteners, ensuring flush fit, smooth operation, and meeting strict tolerances.

Industries Where Post-Drilling Chamfering Tools are More Common

• Construction and Trades: Utilized by plumbers, electricians, and general contractors for deburring and chamfering pipes, conduit, and other materials.
• DIY and Home Improvement: Popular among serious DIY enthusiasts and homeowners for deburring and adding a professional touch to various metalworking and fabrication projects.

Why Drill Chamfer Tools are Popular Across Industries

• Efficiency: Combining drilling and chamfering (with combination bits) saves time and reduces tool changes.
• Quality: Ensures clean, burr-free holes and improves the overall quality and finish of products.
• Safety: Removes sharp edges that can cause cuts or injuries, enhancing workplace safety.
• Functionality: Chamfers improve fastener fit, smooth transitions in assemblies, and can optimize flow within pipe systems.

Machines for Combination Drill and Chamfer Bits

• Drill Presses: The ideal choice for combination bits, offering precise control, perpendicular drilling, and consistent results.
• Handheld Drills (Corded or Cordless): Can be used with combination bits, especially for smaller projects or where portability is a priority. Choose a powerful drill and maintain a steady, firm grip for best results.

Machines for Post-Drilling Chamfering Tools

• Handheld Drills (Corded or Cordless): The most common choice for their versatility and portability.
• Drill Presses: Can offer more precision and control for chamfering holes using a post-drilling tool, especially in production environments.
• Lathes and Machining Centers (Specialized): In some manufacturing settings, post-drilling chamfer tools might be integrated into lathes or CNC machines to automate the chamfering process after drilling.

Important Considerations

• Chuck Size: Ensure your machine's chuck can accommodate the shank size of your chamfer tool.
• Power and Control: Match the machine's power to the size of the hole, chamfer size, and the material you're working with.
• Speed Control: Use appropriate speeds for the material and the chamfering tool to prevent overheating or damage.

Safety First

• Secure Your Workpiece: Clamping your workpiece is essential, especially when using chamfering tools in a drill press.
• Drilling Speed: Follow recommended speeds for the chamfer tool and material.

At Baucor, we go beyond manufacturing drill chamfer tools. We are your dedicated partners in achieving precise and efficient chamfering operations.

Selection Guidance

• Material Matching: We understand that different materials require different tools. We'll guide you in choosing the right chamfer tool material – HSS, cobalt HSS, or carbide-tipped – to match the specific materials you'll be working with.
• Type and Size: We'll help you decide between combination drill/chamfer bits or post-drilling tools, and determine the optimal diameters, chamfer angles, and shank styles for your project and equipment.
• Coatings: If you need the extra durability and performance that coatings offer, we'll discuss the benefits of coated chamfer tools for your specific situations.

Best Practices & Techniques

• Drilling and Chamfering Techniques: We'll share our expertise on proper speeds, techniques, and tips for effective use of both combination and post-drilling chamfer tools.
• Safety Considerations: Your safety is our priority. We'll emphasize safe practices when using chamfer tools, especially with powerful drills.

Technical Support

• Troubleshooting Challenges: If you encounter any issues, we're here to offer advice and suggest alternative chamfer tool designs that might better suit your application.

Partnerships and Feedback

• Customer Insights: We value feedback from our customers. We relay their insights on chamfer tool performance to our suppliers, driving continuous improvement in these tools.
• Design Consultations: If you're designing a product that requires chamfered holes, we can consult on specifications and tool selection to ensure ease of creation.

At Baucor, we are committed to providing comprehensive support and expertise to ensure your success with chamfer tools. Your projects are our priority.

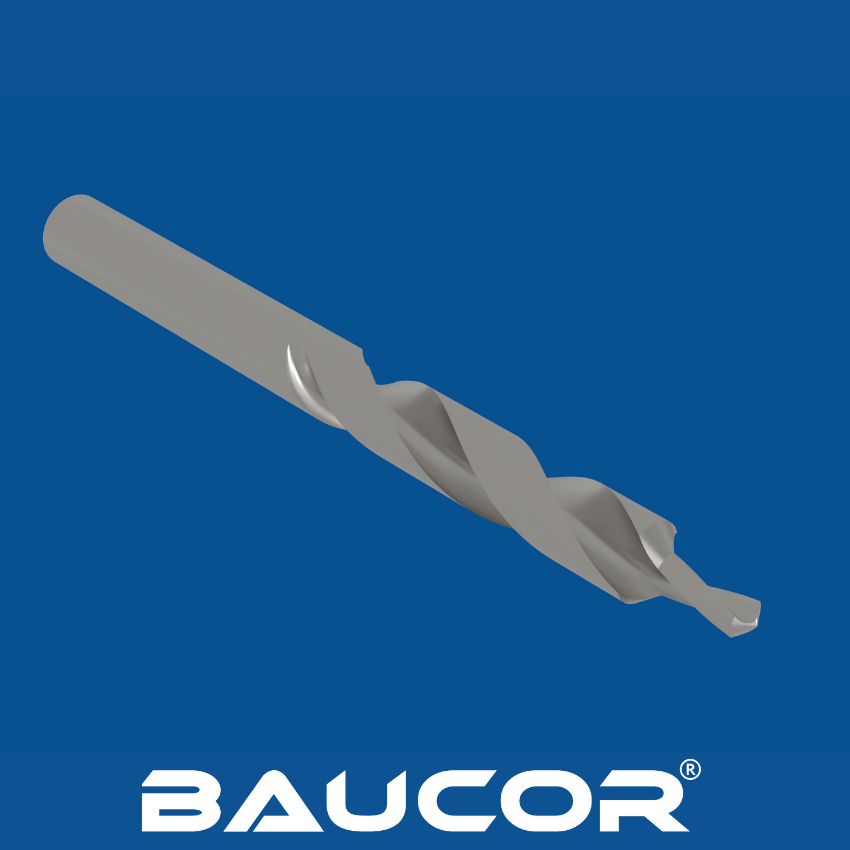

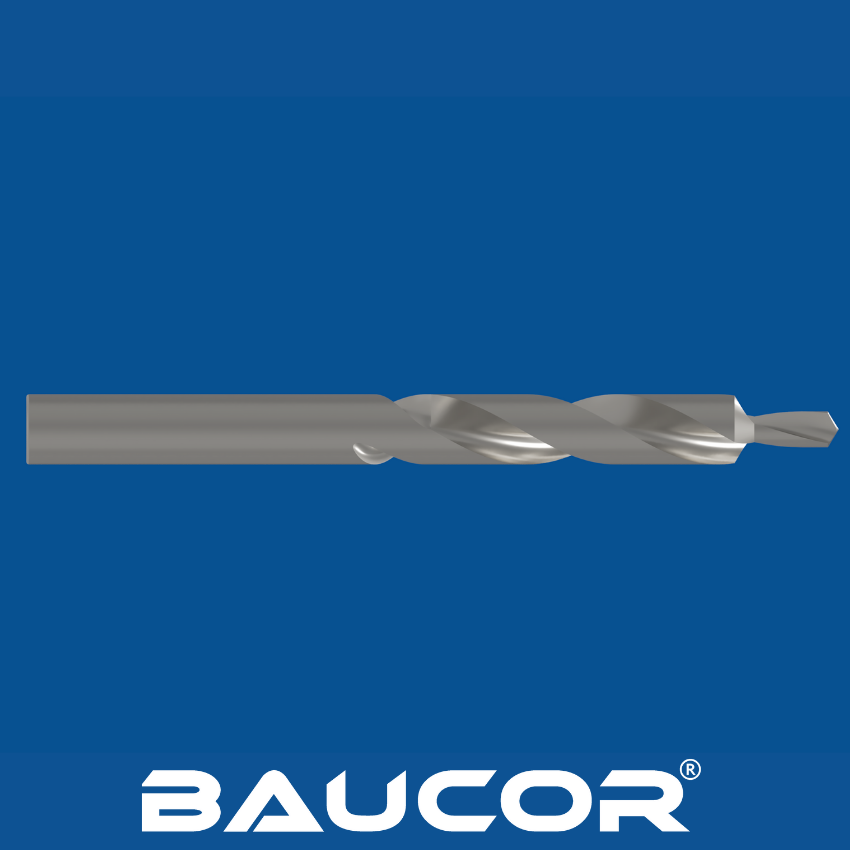

Design Elements: Combination Drill & Chamfer Bits

• Drill Bit Diameter: Sized to create the desired hole diameter.
• Chamfer Angle: Common angles are 82 and 90 degrees, but others exist. This determines the angle of the chamfered edge.
• Chamfer Depth: How far the chamfering cutter extends from the drill bit tip determines the depth of the chamfer.
• Flutes: The drill bit portion has flutes for chip removal.
• Shank: Designed to fit standard drill chucks.

Design Elements: Post-Drilling Chamfering Tools

• Pilot Section: A smaller diameter portion sized to fit inside the pre-drilled hole, guiding the tool.
• Chamfer Angle: Typically 82 or 90 degrees.
• Cutting Edges: Number and design of cutting edges affect material removal rate and smoothness of the chamfer.
• Adjustable or Interchangeable Cutters: Some tools allow for adjusting chamfer size or replacing cutters.
• Shank: Designed to fit standard drill chucks.

Design Trade-offs

• Speed vs. Cleanliness: Aggressive cutters remove material faster but can leave rougher chamfers.
• Strength vs. Sharpness: Harder materials (like carbide) hold an edge longer but are more brittle and harder to re-sharpen when dull.
• Precision vs. Material Hardness: Sharper edges cut cleaner but might be more prone to chipping in very hard materials.

Choosing the Right Design for Your Needs

• Material Hardness: Match the tool material and cutting edges to the materials you'll be working with.
• Desired Finish: Prioritize tools designed for cleaner cuts (more cutting edges, sharper edges) if you need an exceptionally smooth chamfer surface.

Frequency of Use: Invest in premium materials and coatings for heavy-duty, professional use.
