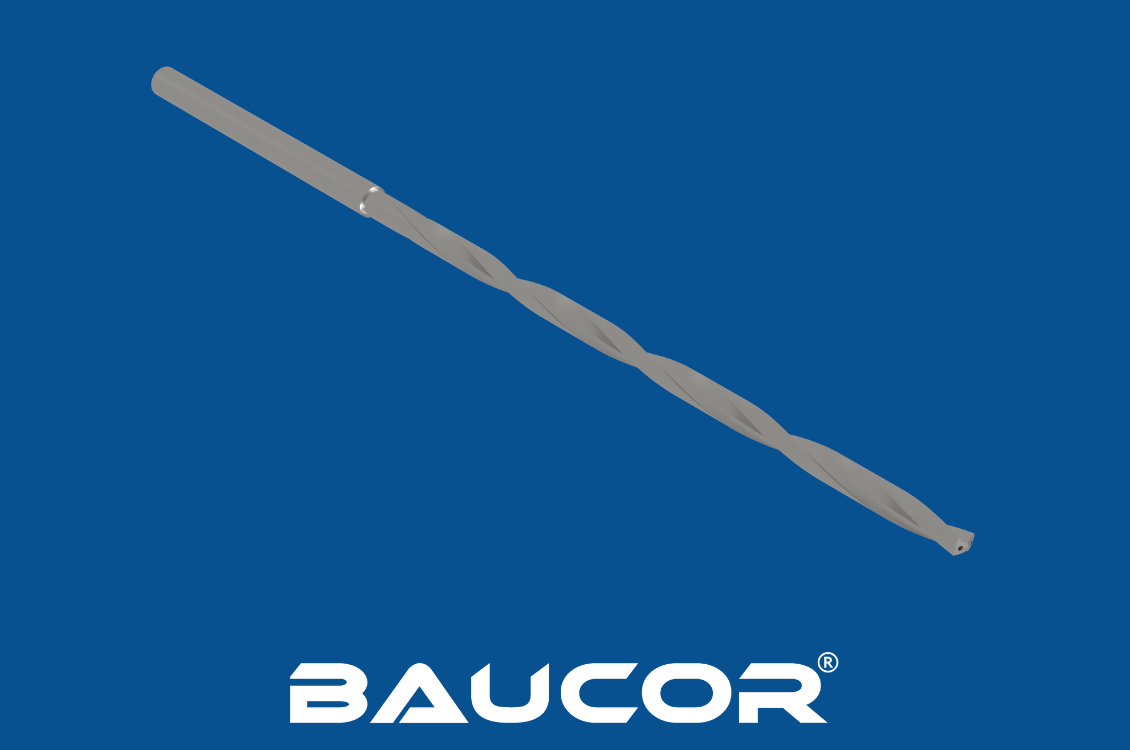

Accurate Deep Hole Drilling with Specialized Deep Hole Drills

Polishing:

• The drill is polished to a smooth finish to reduce friction and improve chip evacuation.

Coating (Optional):

• Some deep hole drills may be coated with materials like titanium nitride (TiN) or titanium carbonitride (TiCN) to further enhance their wear resistance and performance.

Assembly (for BTA and Ejector Drills):

• BTA and ejector drills involve assembling multiple components, including the drill head, shank, and coolant delivery system. These components are carefully assembled to ensure proper alignment and functionality.

1. Inspection and Quality Control:

• Rigorous quality control measures are implemented throughout the manufacturing process to ensure that the deep hole drill meets stringent standards for dimensional accuracy, concentricity, surface finish, and performance.

By following these meticulous steps, manufacturers can produce high-quality deep hole drills that deliver exceptional performance, accuracy, and tool life in demanding drilling applications. The precise engineering and attention to detail involved in their manufacturing ensures that these tools can tackle the challenges of deep hole drilling with efficiency and reliability.

Deep hole drills, depending on their type (gun drill, BTA drill, or ejector drill), are typically made from a combination of materials chosen for their specific properties to ensure optimal performance in demanding drilling applications. Here's a breakdown of the materials used:

Cutting Tip:

1. Solid Carbide (WC): This is the most common and preferred material for deep hole drill tips due to its extreme hardness, wear resistance, and ability to maintain a sharp cutting edge even at high temperatures generated during deep hole drilling. It's suitable for a wide range of materials, including hardened steels, stainless steel, and exotic alloys.
2. Carbide-Tipped (TCT): Some deep hole drills, especially those used for less demanding applications or larger diameters, may feature a carbide tip brazed onto a steel body. This combines the hardness of carbide with the toughness and cost-effectiveness of steel.

Drill Body (Shank):

1. Alloy Steel: High-quality alloy steel is typically used for the drill body (shank) due to its strength, durability, and resistance to bending or deformation under the stresses of deep hole drilling.
2. Stainless Steel: In some cases, stainless steel may be used for the drill body to provide enhanced corrosion resistance, especially in environments where the drill may be exposed to harsh chemicals or fluids.

Internal Coolant Tube (Gun Drills and Ejector Drills):

1. Stainless Steel: Stainless steel is often used for the internal coolant tube due to its corrosion resistance and ability to withstand the high-pressure coolant flow.

Additional Components (BTA Drills):

1. Drill Head: The drill head in BTA drills can be made from solid carbide or feature carbide inserts for cutting edges.
2. Support Pads: These are often made of carbide or ceramic materials to provide wear resistance and support during drilling.

Optional Coatings:

1. Titanium Nitride (TiN): This gold-colored coating can be applied to the cutting tip to further enhance hardness, reduce friction, and improve wear resistance.
2. Titanium Carbonitride (TiCN): This black coating offers even greater hardness and wear resistance than TiN, making it suitable for drilling harder materials or applications with high cutting speeds.
3. Aluminum Titanium Nitride (AlTiN): This coating is known for its high temperature resistance and is often used in high-speed drilling applications.
4. Other Coatings: Other coatings, such as diamond-like carbon (DLC) or chromium nitride (CrN), may also be used in specific applications to further improve the performance and longevity of deep hole drills.

By carefully selecting the right materials and coatings for each component, manufacturers can create deep hole drills that are optimized for specific applications, ensuring precision, accuracy, and extended tool life in challenging deep hole drilling environments.

Deep hole drill coatings significantly enhance performance, tool life, and overall drilling efficiency. Here are the common and specialized coatings used to improve deep hole drills:

Common Coatings:

1. Titanium Nitride (TiN): This gold-colored coating is widely used for its hardness, reduced friction, and improved heat resistance. TiN-coated deep hole drills offer increased tool life and better performance in a variety of materials.
2. Titanium Carbonitride (TiCN): This hard, black coating provides superior wear resistance and lower friction compared to TiN. TiCN-coated deep hole drills are well-suited for machining abrasive materials and for high-speed drilling applications.
3. Titanium Aluminum Nitride (TiAlN): This violet-colored coating exhibits excellent heat resistance and hardness, making it ideal for high-speed and high-temperature drilling applications. TiAlN-coated deep hole drills excel in machining hardened steels and other challenging materials.
4. Aluminum Titanium Nitride (AlTiN): This hard, light grey coating boasts high oxidation temperature and wear resistance. AlTiN-coated deep hole drills are suitable for high-speed machining of difficult-to-cut materials like stainless steel and nickel-based alloys.

Specialized Coatings:

1. Diamond-Like Carbon (DLC): This thin, hard coating provides exceptional wear resistance, low friction, and chemical inertness. DLC-coated deep hole drills are suitable for machining non-ferrous metals, plastics, and composites.
2. Chromium Nitride (CrN): This coating offers good wear and corrosion resistance, making it suitable for drilling in corrosive environments or materials that tend to stick to the drill.
3. HiPIMS (High Power Impulse Magnetron Sputtering): This advanced coating technology produces extremely dense and smooth coatings with enhanced adhesion and wear resistance. HiPIMS-coated deep hole drills offer superior performance and longer tool life in demanding applications.

Choosing the Right Coating:

The ideal coating for a deep hole drill depends on several factors, including:

• Material Being Drilled: The hardness and abrasiveness of the material being drilled will influence the type of coating needed. Harder materials generally require more wear-resistant coatings.
• Drilling Conditions: High-speed or high-temperature drilling may necessitate coatings with superior heat resistance.
• Desired Tool Life: Coatings can significantly extend the lifespan of deep hole drills, so choosing the right coating can help reduce tool replacement costs.

Consulting with the deep hole drill manufacturer or a knowledgeable supplier can help you select the optimal coating for your specific needs. By considering the material, drilling conditions, and desired tool life, you can ensure that your deep hole drills deliver the best possible performance and longevity.

Deep hole drills are specialized tools used for creating precise and accurate holes with a high depth-to-diameter ratio. This unique capability makes them essential in various industries and applications where traditional drilling methods fall short.

Industrial Applications:

• Aerospace: Deep hole drilling is crucial for creating intricate passages and cooling holes in critical aerospace components like turbine shafts, landing gear parts, and hydraulic manifolds. These holes ensure proper functioning and structural integrity.
• Automotive: In the automotive industry, deep hole drills are used to create oil galleries and coolant passages in engine blocks, cylinder heads, crankshafts, and transmission components. These passages are essential for maintaining optimal engine performance and longevity.
• Medical Devices: The medical device industry relies on deep hole drilling for producing precise holes in surgical instruments, implants, and other medical components. The accuracy and surface finish of these holes are vital for ensuring the functionality and safety of medical devices.
• Mold Making: Deep hole drilling is extensively used in the mold-making industry to create cooling channels in molds used for plastic injection molding. These channels help regulate the temperature of the mold during the injection process, resulting in high-quality and dimensionally accurate plastic parts.
• Energy: In the oil and gas industry, deep hole drills are used to create precise holes in drilling equipment, pipes, and other components. These holes are crucial for fluid passage and other critical functions in the extraction process.
• Defense: The defense industry employs deep hole drilling for manufacturing firearms, artillery barrels, and other military components that require deep, precise holes. The accuracy and surface finish of these holes are vital for weapon performance and reliability.

Other Applications:

• General Manufacturing: Deep hole drills are used in various manufacturing industries for creating holes in components for machinery, tools, and other equipment. Examples include hydraulic cylinders, axles, and spindles.
• Scientific Research: Deep hole drilling is also used in scientific research for applications such as coring samples from the earth's crust or creating deep holes for geological studies.

Overall, deep hole drills play a vital role in numerous industries where precise and deep holes are essential for product functionality, performance, and safety. Their specialized design and capabilities make them indispensable tools in modern manufacturing and engineering.

Deep hole drills are indispensable tools in a variety of industries where the creation of precise and deep holes is essential. Here are the primary industries that utilize deep hole drills:

1. Aerospace: The aerospace industry heavily relies on deep hole drilling for manufacturing critical components like turbine shafts, landing gear parts, and hydraulic manifolds. These holes are essential for oil flow, cooling, and structural integrity.
2. Automotive: In the automotive sector, deep hole drilling is used to create oil galleries, coolant passages, and other critical channels in engine blocks, cylinder heads, crankshafts, and transmission components. This ensures optimal engine performance and longevity.
3. Medical Devices: Deep hole drills are crucial in the medical device industry for manufacturing surgical instruments, implants, and other components that require precise and burr-free holes.
4. Mold Making: The mold-making industry extensively uses deep hole drilling to create cooling channels in molds used for plastic injection molding. These channels ensure consistent mold temperatures, resulting in high-quality and dimensionally accurate plastic parts.
5. Oil and Gas: Deep hole drilling is essential in the oil and gas industry for creating deep holes in drilling equipment, pipes, and other components. These holes are used for fluid passage, pressure control, and other critical functions during drilling operations.
6. Defense: Deep hole drilling plays a significant role in the defense industry for manufacturing firearms, artillery barrels, and other military components that require deep, precise holes with strict tolerances.
7. Energy: The energy sector utilizes deep hole drilling for various applications, such as creating holes in turbine components for power generation and drilling geothermal wells.
8. Hydraulics and Pneumatics: Deep hole drills are used to create precise and smooth holes in hydraulic and pneumatic cylinders, valves, and other components where leak-free performance is essential.
9. General Manufacturing: Deep hole drills are also used in various manufacturing industries for creating holes in components for machinery, tools, and other equipment. Examples include axles, spindles, and hydraulic cylinders.

The versatility and precision of deep hole drills make them invaluable in these industries, where the quality and accuracy of deep holes are critical for product performance, safety, and longevity.

Deep hole drills are specialized tools that require specific machines for optimal performance and efficiency. Here are the main types of machines used for deep hole drilling:

1. Gun Drilling Machines: These machines are specifically designed for gun drills, which are single-flute drills with internal coolant channels. Gun drilling machines have high-pressure coolant systems, precise spindle rotation, and rigid structures to ensure accurate and efficient deep hole drilling. They are often used for smaller diameter holes.

2. BTA Drilling Machines: BTA (Boring and Trepanning Association) drilling machines are used for larger diameter deep hole drilling. These machines utilize BTA drills, which have multiple cutting edges and internal coolant delivery through the drill head. BTA drilling machines are known for their high material removal rates and ability to produce deep, straight holes.

3. Ejector Drilling Machines: These machines use ejector drills, which have a unique double-tube design for efficient chip removal and coolant delivery. Ejector drilling machines are suitable for a wide range of hole diameters and depths.

4. Deep Hole Drilling Centers: These machines are versatile and can accommodate different deep hole drilling techniques, including gun drilling, BTA drilling, and ejector drilling. They often feature CNC (Computer Numerical Control) technology for automation and precision.

5. CNC Lathes and Machining Centers: While not exclusively for deep hole drilling, CNC lathes and machining centers can be equipped with specialized tooling and high-pressure coolant systems to perform deep hole drilling operations. This is often used for complex parts that require both turning and deep hole drilling.

6. Custom-Built Machines: In some cases, custom-built machines are designed for specific deep hole drilling applications. These machines are tailored to meet unique requirements for hole size, depth, material, and production volume.

The choice of machine depends on several factors, including the desired hole size, depth, material, required precision, and production volume. Consulting with machine tool manufacturers or experts is recommended to determine the most suitable machine for your specific deep hole drilling needs.

Here are some additional points to consider:

• High-Pressure Coolant Systems: Deep hole drilling machines require high-pressure coolant systems to effectively remove chips and cool the cutting zone.
• Rigid Machine Construction: The machines must be rigid to minimize vibrations and ensure straightness of the drilled holes.
• Specialized Tooling: Deep hole drilling often requires specialized tooling, such as gun drills, BTA drills, and ejector drills, along with appropriate holders and adapters.

By understanding the different types of machines and their capabilities, you can make an informed decision and choose the right machine for your deep hole drilling application.

As a leading manufacturer of deep hole drills, Baucor would likely offer a comprehensive suite of design and engineering support services to ensure customers achieve optimal performance and efficiency in their deep hole drilling applications. These services could include:

1. Custom Deep Hole Drill Design: Baucor's team of experienced engineers would work closely with customers to design custom deep hole drills tailored to their specific needs. This includes optimizing drill geometries, selecting appropriate materials and coatings, and ensuring the drill meets the exact specifications required for the application.

2. Material Selection and Coating Expertise: Baucor would provide guidance on selecting the most suitable material and coating for the deep hole drill, considering factors like the workpiece material, drilling parameters, and desired tool life. They would recommend materials like solid carbide, carbide-tipped steel, or other specialized materials, along with coatings like TiN, TiCN, or AlTiN to enhance performance and durability.

3. Deep Hole Drilling Process Optimization: Baucor's engineers would analyze the customer's existing drilling processes and suggest improvements to enhance efficiency, reduce tool wear, and improve overall productivity. This may involve optimizing cutting parameters like spindle speed, feed rate, and coolant pressure, as well as recommending alternative tooling or strategies.

4. Troubleshooting and Technical Support: Baucor would offer comprehensive technical support to address any issues customers encounter with their deep hole drills. This could include on-site troubleshooting, remote assistance via phone or video conferencing, and access to a knowledge base of technical resources and troubleshooting guides.

5. Training and Education: Baucor may offer training programs or workshops to educate customers on the proper use and maintenance of deep hole drills. This would empower operators to maximize tool life, improve drilling efficiency, and achieve better results.

6. Application-Specific Solutions: Baucor may have expertise in specific industries or applications that require deep hole drilling, such as aerospace, automotive, or medical devices. They can leverage this knowledge to offer tailored solutions that meet the unique challenges of these industries.

7. Research and Development: Baucor likely invests in research and development to continuously improve their deep hole drill technology and develop innovative solutions for complex drilling challenges. They may collaborate with customers on research projects or offer beta testing opportunities for new products.

By offering a comprehensive suite of design and engineering support services, Baucor can help customers maximize the value and performance of their deep hole drills, ultimately leading to improved productivity, reduced costs, and enhanced product quality.

Deep hole drills are specialized tools designed to create holes with high depth-to-diameter ratios, and their design is crucial for achieving optimal performance, precision, and efficiency. Here are the key design guides for different types of deep hole drills:

Gun Drills:

1. Single Flute Design: Gun drills have a single straight flute for efficient chip evacuation and coolant delivery. This design minimizes friction and heat generation during drilling.
2. Internal Coolant Hole: A central coolant hole runs through the entire length of the drill, allowing high-pressure coolant to be delivered directly to the cutting zone. This ensures efficient cooling and chip removal, crucial for deep hole drilling.
3. Cutting Tip Geometry: The cutting tip geometry is critical for achieving precise holes and minimizing tool wear. It includes the following elements:

• Point Angle: Typically around 130 degrees, this angle influences chip formation and cutting forces.
• Margin Width: The width of the flat surface behind the cutting edge affects chip flow and cutting stability.
• Lip Height: The height difference between the two cutting edges impacts chip thickness and cutting forces.

1. Guide Pads: Located behind the cutting edge, guide pads help stabilize the drill and maintain straightness during deep hole drilling. The number, size, and shape of guide pads vary depending on the drill diameter and application.

BTA Drills:

1. Multiple Cutting Edges: BTA drills have multiple cutting edges arranged around the drill head. This allows for higher material removal rates and efficient chip evacuation through the central bore.
2. Internal Coolant Delivery: Coolant is delivered through the drill head to the cutting zone, ensuring effective cooling and chip removal.
3. Pilot Drill: A pilot drill is often used to guide the BTA drill and establish the initial hole geometry.

Ejector Drills:

1. Double Tube Design: Ejector drills have a double tube design, with coolant delivered through the outer tube and chips evacuated through the inner tube. This creates a Venturi effect, enhancing chip removal.
2. Cutting Head Design: The cutting head typically has two cutting edges for efficient material removal.

General Design Considerations for All Deep Hole Drills:

• Material Selection: Solid carbide or carbide-tipped designs are common for their hardness and wear resistance.
• Coating: Coatings like TiN, TiCN, or AlTiN can enhance tool life and performance.
• Overall Length and Diameter: The length-to-diameter ratio is a critical factor in determining the drill's stability and performance.
• Shank Design: Typically a straight shank with a Weldon flat for secure clamping in the drilling machine's chuck.

By adhering to these design guides, manufacturers can produce high-quality deep hole drills that deliver precise, straight, and deep holes with excellent surface finishes, ensuring optimal performance and longevity in demanding applications.
