• Initial Shaping: The chosen steel rod is cut to approximate length and undergoes a heat treatment cycle to optimize its hardness and prepare it for subsequent machining processes.

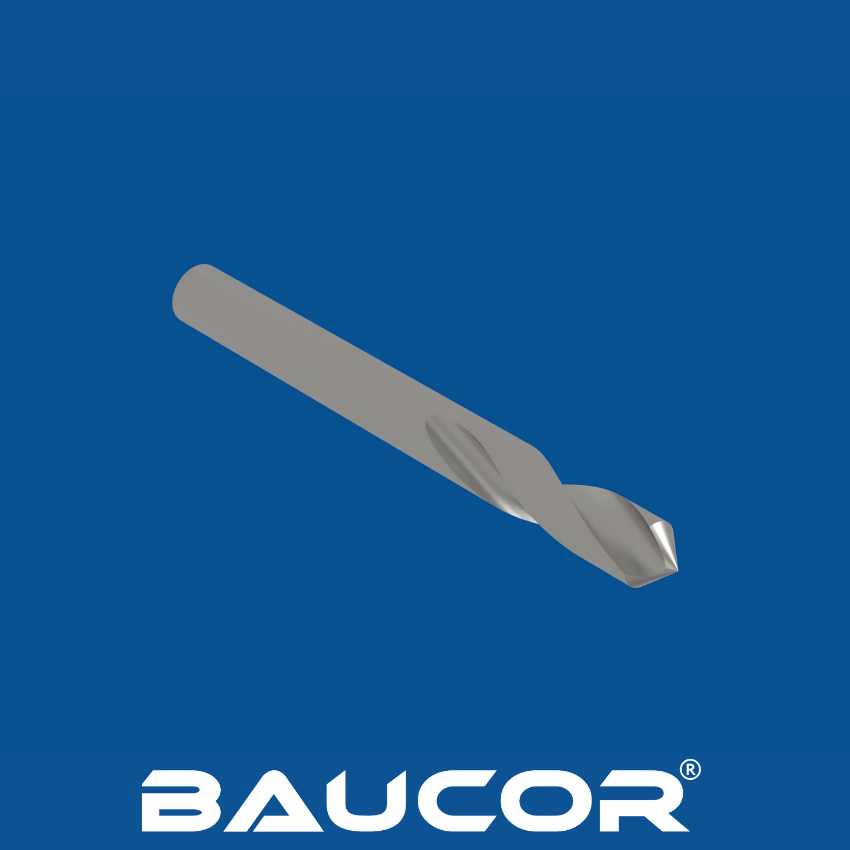

2. Flute and Tip Formation: Specialized grinding processes are used to create the spot drill's unique shape:

• Flutes: Typically, spot drills have two flutes for material removal during the drilling operation.
• Conical Tip and Angle: Precision grinding machines carefully shape the conical tip to the desired included angle (90°, 120°, etc.). This angle is critical for accurate centering.

3. Heat Treatment (Final):

• Optimizing Material Properties: The spot drill undergoes another heat treatment cycle. This fine-tunes its hardness, toughness, and wear resistance, ensuring it can create precise centers in workpieces and maintain its shape over multiple uses.

4. Surface Treatments (Optional): Manufacturers may offer coatings for enhanced performance:

• Black Oxide: A basic surface treatment providing some lubricity and corrosion resistance.
• Titanium Nitride (TiN): The classic gold-colored coating reduces friction and wear.
• Advanced Coatings: Options like Titanium Aluminum Nitride (TiAlN) for high-temperature applications or specialist coatings for specific material interaction improvements.

5. Quality Control: Stringent inspections ensure quality:

• Angle Accuracy: The included angle of the conical tip is meticulously checked to ensure it conforms to the intended design.
• Dimensional Accuracy: Overall spot drill dimensions and flute geometry are verified against the manufacturer's tolerances.
• Hardness Testing: Verifies the material achieved the desired properties through heat treatment
• Surface Inspection: The spot drill is examined for flaws or imperfections that might affect performance or tool life.

The choice of material for a spot drill plays a critical role in its performance, longevity, and suitability for various workpiece materials. Let's delve deeper into your options:

Common Materials:

• High-Speed Steel (HSS): The versatile foundation of many spot drills, HSS provides a solid balance of:

• Hardness: Essential for effectively indenting a range of workpiece materials and creating accurate starting points.
• Toughness: Reduces the risk of premature breakage, ensuring reliable performance in various spotting operations.
• Affordability: Cost-effective for general-purpose use, making HSS a popular choice across many industries.
• Cobalt High-Speed Steel (HSS-E): The heavy-duty upgrade! HSS-E steps up the game in demanding scenarios due to its:

• Heat Resistance: Maintains its hardness and cutting ability even when temperatures rise due to aggressive spotting in tough materials or lack of sufficient lubrication.
• Wear Resistance: Extends tool life significantly compared to standard HSS, especially when spotting abrasive materials or in high-production environments.

Less Common Yet Potentially Ideal Materials

• Powdered Metal High-Speed Steel (PM HSS): The champion of wear resistance! PM HSS boasts a unique microstructure that translates to:
• Exceptional Toughness: Minimizes risk of chipping or breakage even in demanding applications.
• Extreme Wear Resistance: Outlasts both standard HSS and HSS-E, especially when repeatedly spotting hardened steels, stainless steels, or highly abrasive materials.
• Carbide: For the most extreme scenarios, solid carbide spot drills offer unparalleled performance but come with a significantly higher price tag:
• Maximum Hardness: Ideal for creating precise centering points in the hardest workpiece materials where other tool steels would wear out rapidly.
• Rigidity: Maintains accuracy over a very long lifespan, ensuring consistent centering even in high-volume production.

Factors Influencing Material Choice

• Workpiece Material: The primary factor! Match the spot drill material's hardness and wear resistance to the challenges posed by the material you're working with.
• Production Volume: High-volume spotting often justifies the investment in more advanced tool materials for their extended lifespan and reduced downtime for tool changes.
• Budget: Consider the balance between upfront tool cost and long-term benefits. A more expensive spot drill made from HSS-E or PM HSS can prove more cost-effective over time in demanding applications.

Spot drills, tasked with creating precise centering points, benefit from coatings that boost wear resistance, reduce friction, and optimize chip evacuation. Here's what you might encounter:

Common Coatings

Black Oxide: A basic and affordable surface treatment offering:

• Lubricity: Provides some friction reduction, aiding in chip evacuation and minimizing heat buildup.
• Mild Corrosion Resistance: Offers limited yet valuable protection in certain environments.

Titanium Nitride (TiN): The classic gold-colored coating offering a versatile upgrade:

Wear Resistance: Extends tool life, allowing the spot drill to maintain its centering accuracy even when working with abrasive materials.

Reduced Friction: Promotes smoother operation and less heat generation, minimizing the risk of workpiece distortion around the spot.

• Titanium Aluminum Nitride (TiAlN): Ideal for higher temperatures and tougher materials:


• Heat Resistance: Maintains its properties even when spot drilling generates significant heat, a common occurrence with harder materials or aggressive spotting parameters.
• Lubricity: Low friction aids in accurate centering and minimizes heat buildup.

Specialized Coatings

Titanium Carbonitride (TiCN): Excels at reducing friction and galling:

• Superior Lubricity: Ensures smooth drilling and reduces galling risks, especially with materials prone to adhesion to the cutting edges.
• Spot Accuracy: Smoother cutting action and reduced friction help maintain the precise geometry of the spot.

Diamond-Like Carbon (DLC): The extreme performance option:

Unmatched Hardness: Exceptional wear resistance for the most demanding materials or very high production volumes.

Super Low Friction: Optimizes chip flow and minimizes forces on the spot drill, promoting accuracy and tool longevity.

• Multi-Layer Coatings: Cutting-edge coatings strategically combining multiple materials:
• Customized Performance: Tailored to overcome specific challenges in spotting operations like extreme heat, galling with a particular material, and demanding tolerance requirements.

Choosing Wisely

• Workpiece Material: The key factor! Match the coating to the material being drilled to minimize wear and optimize centering accuracy.
• Lubrication: Even coated spot drills benefit from proper lubrication. Follow the manufacturer's recommendations.
• Cost vs. Performance: Balance the benefits of advanced coatings with their potentially higher price tag. Choose a coating that delivers the most value for your specific application.

Key Industries Relying on Spot Drills

Manufacturing (General): A mainstay in manufacturing for creating accurate starting points for subsequent drilling operations. Applications include:

• Component Fabrication: Precisely locating hole centers on various machine components, housings, and assemblies.
• Jigs and Fixtures: Ensuring accurate hole placement on custom tooling for repeatable manufacturing processes.

Aerospace: Stringent tolerance requirements necessitate spot drills for precision machining and assembly of aerospace components. Applications include:

• Engine Parts: Accurate hole drilling and tapping on critical engine components.
• Structural Assemblies: Creating pilot holes for fasteners in airframe and substructure fabrication.

Automotive: Used throughout the manufacturing of vehicles:

• Powertrain: Hole positioning for fasteners in engine blocks, transmissions, and drivetrain components.
• Body and Chassis: Spotting holes for joining body panels, structural elements, and interior components.

Machining and Toolmaking: Spot drills play a versatile role in machine shops:

• General-purpose hole creation: Precision drilling of various components or workpieces.
• Molds and Dies: Accurate centering for subsequent machining operations on mold or die sections.

Maintenance and Repair (MRO): Spot drills streamline repair and rework operations:

• Hole Relocation: Creating new centering points when existing holes become damaged or misaligned.
• Restoration: Removing broken fasteners by accurately drilling center points for extraction.

Why Spot Drills are Essential

1. Drilling Accuracy: Spot drills prevent drill bits from "wandering," ensuring holes are drilled in the exact intended location.
2. Hole Quality: By providing a stable starting point, spot drills reduce the risk of chipping, burrs, and other imperfections around the hole's entrance.
3. Drill Bit Preservation: Spotting reduces stress on drill bits, extending their lifespan and minimizing breakage.
4. Reduced Rework: Accuracy gains translate to fewer scrapped parts and reduced time spent fixing errors.

Industries Where Spot Drills are Indispensable

• Manufacturing (General): Cornerstone tools in manufacturing facilities for creating precise centering points for drilling across various components, sub-assemblies, and finished products.
• Aerospace: Spot drills are critical for the precision demanded by aerospace manufacturing, ensuring accurate hole placement in engine components, airframes, and other critical parts.
• Automotive: Used throughout the automotive production process for locating holes accurately on engine parts, bodywork, and structural components.
• Machining and Toolmaking: Essential tools for general-purpose drilling on a wide range of workpieces and for creating starting points in the creation of molds and dies.
• Maintenance and Repair (MRO): Spot drills streamline repair operations, allowing for the relocation of damaged holes, extraction of broken fasteners, and general restoration tasks.

Why Spot Drills?

Spot drills bring several crucial advantages to these industries:

• Accuracy: Prevents drill bit wandering, ensuring holes are in the exact intended location.
• Quality: Improves hole finish and reduces the risk of damage to the workpiece.
• Efficiency: Extends drill bit life and minimizes costly rework due to misplaced holes.

What Machines Use Spot Drills and Why They're Essential for Precision Manufacturing

Spot drills are highly specialized cutting tools that play a crucial role in precision manufacturing processes across various industries. Here are the primary machines that utilize spot drills and the reasons why:

• Milling Machines: In milling operations, spot drills ensure that holes are drilled in the exact locations required. Their conical shape creates a precise starting point, preventing larger drill bits from wandering or slipping, which is vital for maintaining tight tolerances.
• CNC Machines: Computer Numerical Control (CNC) machines rely heavily on spot drills. By pre-drilling a guiding hole, spot drills ensure that subsequent drilling operations align perfectly with the programmed coordinates for maximum accuracy and repeatability.
• Drill Presses: Similar to milling machines, spot drills are used on drill presses to provide pinpoint accuracy for hole placement and reduce the risk of surface damage.
• Lathes: While center drills are more typical on lathes, spot drills can also be highly effective. They are especially beneficial for centering and starting holes on workpieces with irregularities or imperfect roundness.

Why Choose Spot Drills?

• Precision: The primary advantage of spot drills is accurate hole placement. This translates to higher-quality finished parts and fewer rejections.
• Efficiency: Spot drills prevent time-consuming rework and scrap caused by misplaced holes.
• Surface Protection: The shallow guiding hole created by a spot drill minimizes the risk of the main drill bit marring the workpiece's surface.

At Baucor, we believe in a holistic approach to spot drilling solutions. We're not just a supplier of spot drills; we're your dedicated partner throughout the entire process, from initial design to final delivery.

Design & Engineering Expertise

• Material Selection: Our experienced engineers work closely with you to understand your specific needs and recommend the optimal material for your spot drill. Whether it's high-speed steel, carbide, or advanced coatings, we ensure your tool is built for longevity and performance.
• Geometry Optimization: We collaborate to design the ideal spot drill geometry, tailoring the point angle, flute design, and other parameters to maximize precision, chip evacuation, and overall performance in your specific application.
• Application Analysis: Our team thoroughly analyzes your machining process to recommend spot drills that seamlessly integrate with your existing tooling and equipment, ensuring smooth and efficient operation.

In-House Manufacturing Excellence

• Precision Production: Our state-of-the-art manufacturing facilities produce your spot drills with the highest precision, adhering to the tightest tolerances for consistent accuracy.
• Quality Control: Rigorous quality checks throughout every production stage guarantee that your spot drills meet or exceed industry standards for performance and reliability.

Beyond the Product: Baucor's Commitment

• Technical Support: Our engineers are always available to provide ongoing technical assistance, helping you optimize tool selection and usage for maximum productivity.
• Continuous Improvement: We partner with you to analyze tool performance and identify areas for continuous improvement, ensuring your spot drilling operations always perform at their peak.

At Baucor, we're more than just a supplier. We're your trusted partner in achieving superior spot drilling results.

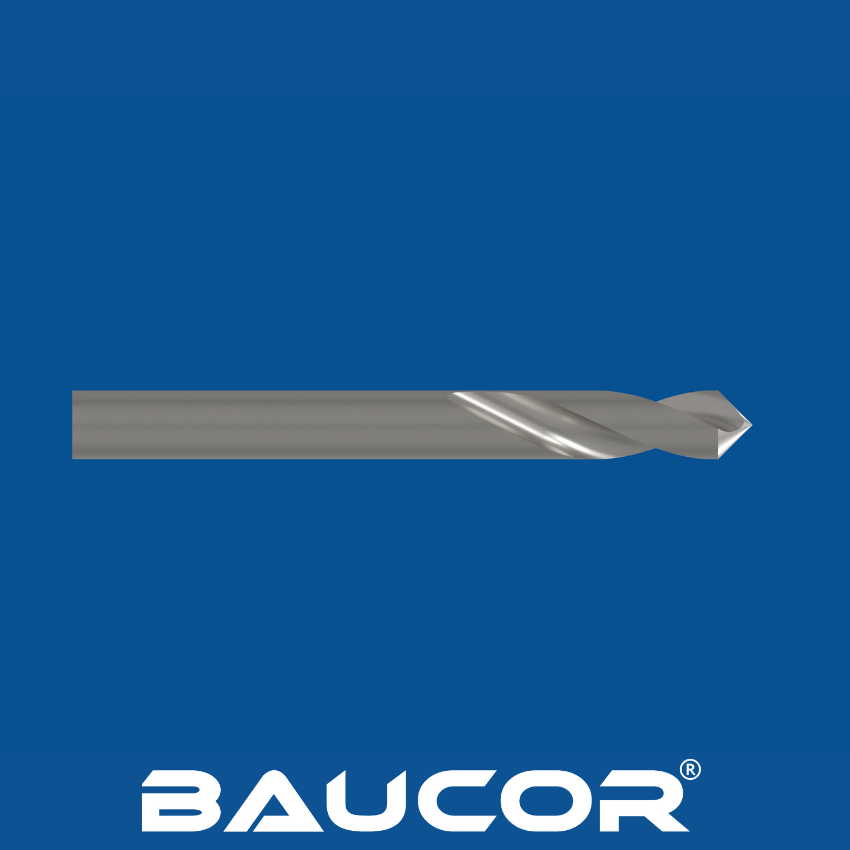

Essential Design Considerations for Spot Drills

To achieve optimal performance and accuracy, several key elements go into the design of a spot drill:

• Point Angle: The most common point angles for spot drills are 90 degrees and 120 degrees. A 90-degree angle offers a good balance of centering ability and material removal, while a 120-degree angle is better for harder materials.
• Flute Design: The number of flutes and their helix angle influence chip evacuation and cutting efficiency. Spot drills typically have two or three flutes.
• Web Thickness: The web is the central part of the drill that provides strength. A thicker web offers increased rigidity but reduces chip evacuation. Web thickness must be balanced with strength requirements and the need for efficient chip removal.
• Material: High-speed steel (HSS) is a common material for spot drills, offering a good combination of strength and affordability. For tougher materials or high-volume production, carbide spot drills provide superior wear resistance and longer tool life.
• Coatings: Advanced coatings like TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride) can significantly improve tool performance, reduce wear, and provide greater heat resistance.

How Baucor Can Help Optimize Your Spot Drill Design

• Simulation and Analysis: Our engineers can utilize cutting-edge simulation software to analyze the performance of different spot drill designs under your specific machining conditions. This allows for optimization before manufacturing.
• Material Expertise: We'll guide you in selecting the ideal material and coating combination based on your workpiece material, machining parameters, and desired tool life.
• Prototyping: Baucor can quickly produce prototypes of custom spot drill designs for testing and validation in your actual application.

Guidelines for Using Spot Drills

• Spot Depth: Ideally, the spot depth should be approximately half the diameter of the final hole.
• Speeds and Feeds: Proper speeds and feeds are critical for optimal spot drill performance. Consult manufacturer recommendations and adjust based on your specific material and cutting conditions.
