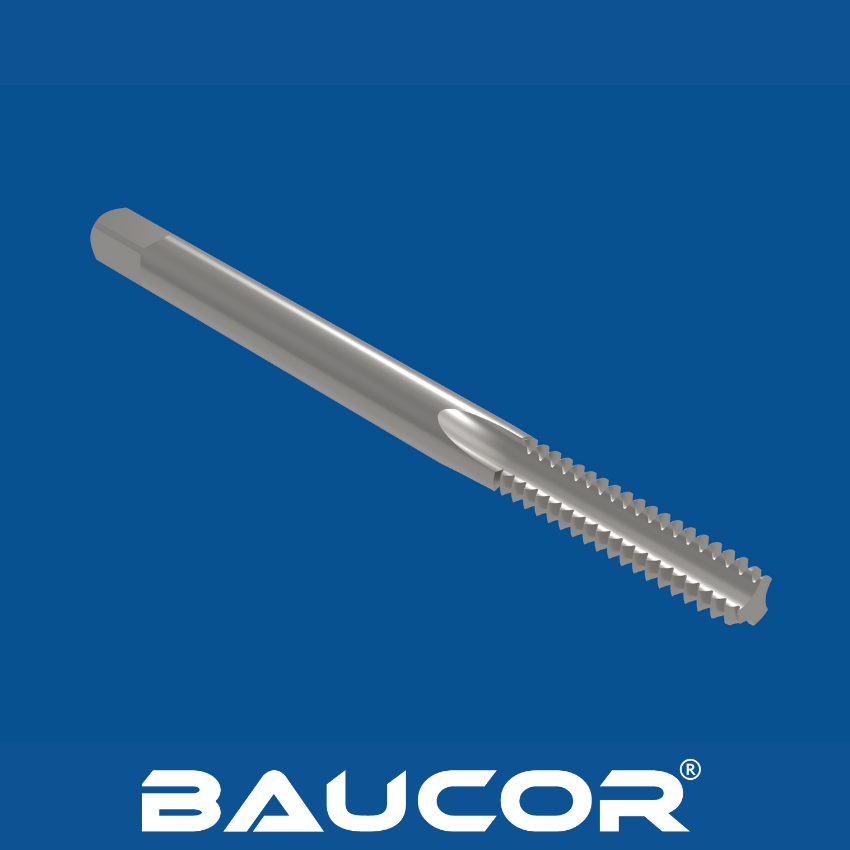

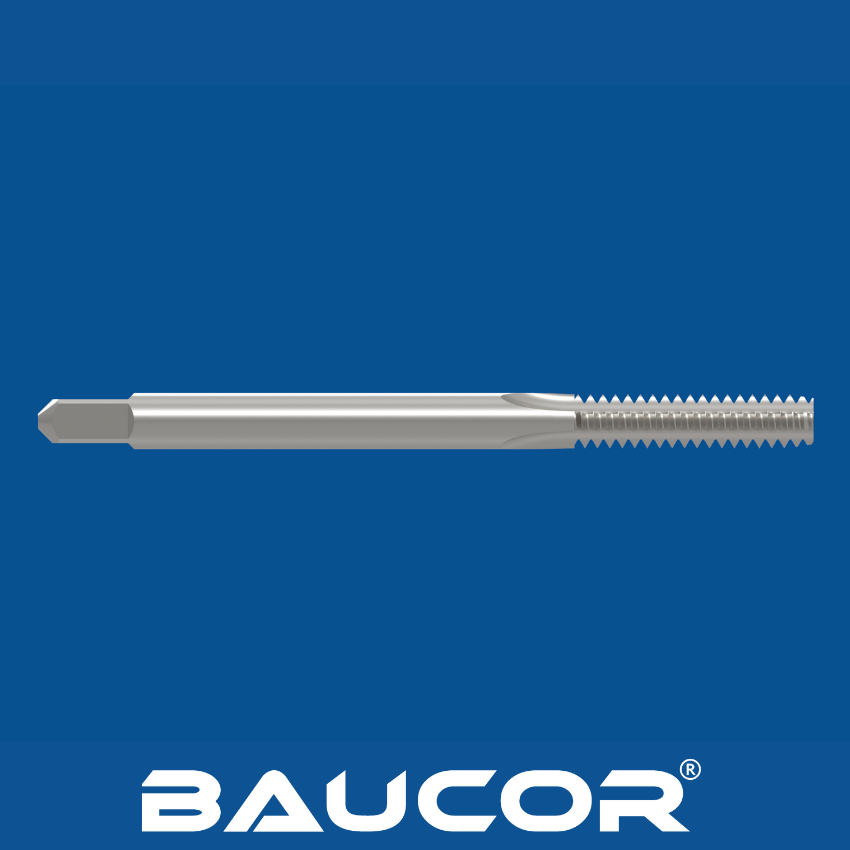

Precision Hand Tapping with Straight Flute Taps for Versatile Threading

Straight flute hand taps, known for their simplicity and effectiveness in low-chip materials, require robust materials to handle the rigors of thread cutting. Here's what manufacturers like Baucor likely use:

Common Materials:

• High-Speed Steel (HSS): The industry standard for many hand taps! HSS offers a well-balanced combination of:
• Hardness: Essential for cutting threads into various materials.
• Toughness: To resist breakage during tapping operations.
• Affordability: Making HSS an attractive choice for general-purpose applications.
• Cobalt High-Speed Steel (HSS-E): When the job gets tougher, HSS-E steps in. Its increased cobalt content enhances:
• Heat Resistance: Crucial for tapping more challenging materials or high-volume production environments.
• Wear Resistance: Extends the lifespan of the tap, reducing the need for frequent replacements.

Specialty Materials:

• Powdered Metal High-Speed Steel (PM HSS): For truly demanding tasks in abrasive materials, PM HSS might be the answer. Its unique manufacturing process yields:
• Exceptional Wear Resistance: Outperforming standard HSS in challenging scenarios.
• High Toughness: Minimizes the risk of tap breakage, even in heavy-duty use.

Carbide: In certain scenarios, solid carbide hand taps might be utilized. Their exceptional hardness and wear resistance are ideal for:

• Highly Abrasive Materials: When tapping exceptionally tough or abrasive materials where standard taps would wear out prematurely.
• High-Precision Applications: Carbide can maintain tolerances and form sharper threads due to its rigidity.

Specialty Tool Steels: Some manufacturers may offer taps made from specific tool steel grades for very specialized tasks where a unique blend of properties is required:

Enhanced Shock Resistance: For applications where impact or vibration might be a concern.

Specific Material Compatibility: To optimize performance when tapping certain plastics, non-ferrous alloys, or other materials with unique machining characteristics.

• Surface Treatments and Coatings: Beyond the base material, coatings play a crucial role in enhancing performance:
• Nitride-based Coatings: Options like Titanium Nitride (TiN), Titanium Aluminum Nitride (TiAlN), or Titanium Carbonitride (TiCN) are frequently used to improve wear resistance, increase surface hardness, and reduce friction.
• Specialized Coatings: For particular workpiece materials or applications, less common coatings like Chrome Nitride (for corrosion concerns) or multi-layer coatings combining the strengths of multiple materials might be employed to further enhance performance.

The Importance of Application-Specific Choices

Remember, choosing the right tap material goes beyond simply selecting the hardest or most advanced option. To maximize performance, tool life, and minimize project costs:

• Consult with Experts: Tap manufacturers like Baucor or experienced machinists can provide guidance tailored to your specific needs.
• Balancing Performance and Cost: While some alternative materials may excel in certain areas, they often come with a higher price tag. Evaluate the cost vs. performance gains carefully.
• Testing: In critical applications, it might be beneficial to test different tap materials to determine what works best in your specific scenario.

Baucor manufactures precision straight flute hand taps designed to produce accurate, consistent internal threads in a wide variety of materials. Each thread hand tap is engineered for reliable cutting performance, smooth chip evacuation, and extended tool life. Ideal for manual and machine-assisted threading operations, our straight flute hand taps deliver the precision and durability required for demanding industrial applications.

Straight flute hand taps, even when made from high-quality materials like HSS or HSS-E, can benefit from surface treatments and coatings. These coatings enhance various properties, leading to smoother tapping operations, extended tool life, and improved thread quality. Let's explore some common options Baucor might offer:

Popular Coatings for Hand Taps

• Titanium Nitride (TiN): A classic gold-colored coating, TiN offers a well-rounded package of benefits:
• Reduced Friction: Minimizes friction between the tap and workpiece material, reducing tapping force and heat generation.
• Improved Wear Resistance: Extends tap life, especially when tapping abrasive materials or high-volume production.
• Cost-Effective: A balance between affordability and performance benefits.
• Titanium Aluminum Nitride (TiAlN): When heat becomes a major concern, TiAlN takes center stage:
• High-Temperature Applications: Maintains its properties at elevated temperatures, ideal for tapping heat-resistant materials or high-speed operations.
• Oxidation Resistance: Provides additional protection against degradation at high temperatures.

Other Coatings

 Depending on Baucor's offerings and your specific needs, other options might include:

• Chromium Nitride (CrN): Excellent for situations with high humidity or potential corrosion concerns.
• Multi-Layer Coatings: Cutting-edge coatings that combine the strengths of multiple materials, offering superior wear resistance, low friction, and protection against specific types of wear.

Titanium Carbonitride (TiCN): Known for its combination of hardness, wear resistance, and lubricity (reduced friction). TiCN excels at:

• Reducing Galling: Prevents material from sticking to the tap, especially in softer workpiece materials.
• General-Purpose Performance: Its balance of properties makes it suitable for a wider range of tapping applications compared to some more specialized coatings.

Diamond-Like Carbon (DLC): DLC coatings boast extreme hardness, superior wear resistance, and a very low friction coefficient. This makes them ideal for:

Demanding Materials: Tapping exceptionally tough or abrasive alloys where other coatings wear out prematurely.

Precision Tapping: Maintaining close tolerances and high surface quality in threads due to reduced friction and excellent wear resistance.

• Zirconium Nitride (ZrN): Offers characteristics similar to TiN (wear resistance, reduced friction) but with a distinctive bronze-like color. It's often a viable alternative for general-purpose tapping.
• Specialized and Proprietary Coatings: Some tap manufacturers might offer unique coatings tailored to specific workpiece materials or applications. These may include:
• Multi-layer Nanocoatings: Combining multiple materials with properties designed for enhanced performance in highly demanding tasks.
• Coatings Optimized for Non-Ferrous Materials: Addressing unique interactions between specific coatings and materials like aluminum alloys.

How Coatings Can Help You

• Smoother Tapping: Reduced friction translates to less force required for tapping, minimizing operator fatigue and improving tap control.
• Cleaner Threads: Coatings can help produce cleaner, more precise threads by minimizing chip buildup and improving chip evacuation.
• Reduced Downtime: Extended tool life due to wear resistance means fewer tap changes and less production downtime.
• Cost Savings: While coated taps might have a slightly higher initial cost, their extended lifespan and improved performance can lead to significant cost savings over time.

Optimizing Your Choice: Consider the Application

• Workpiece Material: Match the coating to the material you're tapping. For example, CrN might be ideal for stainless steel due to its corrosion resistance, while TiAlN excels at high temperatures encountered when tapping Inconel alloys.
• Production Volume: For high-volume tapping, the benefits of a premium coating like TiAlN in terms of tool life can outweigh the slightly higher cost.
• Budget: Consider the cost-effectiveness of different coating options. Standard TiN coatings offer a good balance for many applications.

Straight flute taps, also known as hand taps, are workhorses in the world of thread creation. But in what industries are these versatile tools most commonly used? Let's explore some key applications:

• Plumbing: From residential settings to commercial buildings, plumbers rely on straight flute taps to create threaded connections in pipes, valves, faucets, showerheads, and other components for water and gas lines.


• HVAC (Heating, Ventilation, and Air Conditioning): These taps play a vital role in joining copper tubing and other materials used in refrigerant lines within air conditioners and heat pumps. They're also essential for tapping connections on valves and other HVAC system components.


• Industrial Manufacturing and Processing: Extensive piping systems are a hallmark of many industrial facilities. Straight flute taps are crucial for creating leak-proof connections in pipes, tanks, valves, and manifolds used for transporting liquids, gasses, and other fluids within these processes.


• Automotive: The world of vehicles relies heavily on threaded connections for fluid lines. Straight flute taps are instrumental in tapping connections for fuel lines, brake lines, oil lines, and hydraulic systems within various automotive applications.


• Repair and Maintenance (MRO): When threads become damaged in pipes, fittings, or components across various industries, straight flute taps come to the rescue. They enable technicians to restore these threads during maintenance and repair operations.


• Custom Fabrication: Specialized pipework, fixtures, and components often require threaded connections. Straight flute taps empower creators to produce these unique parts needed in various applications.

Straight flute taps, often referred to as hand taps, are a staple in various industries due to their ability to create reliable threaded connections. Here's a breakdown of some key users:

• Plumbing & HVAC: These taps are essential for forming leak-proof connections in pipes, valves, faucets, and refrigerant lines within residential, commercial, and industrial settings.


• Manufacturing & Processing: Extensive piping networks in factories rely on straight flute taps for secure connections in tanks, manifolds, and pipes transporting fluids and gases.


• Automotive & Transportation: They play a crucial role in tapping fluid lines for fuel, brakes, oil, and hydraulic systems across various vehicles.


• Repair & Maintenance (MRO): Restoring damaged threads in pipes, fittings, and components across industries is a common application for these taps.


• Custom Fabrication: Creating specialized parts with threaded connections for unique applications often involves using straight flute taps.

The Common Thread: Leakproof Performance

Straight flute taps offer a versatile and user-friendly solution for creating secure threaded connections across numerous industries. Their ability to function both manually and with drill presses makes them adaptable to various needs.

While straight flute taps, also known as hand taps, can be used manually, their functionality extends to various machines. Here's a breakdown of some common applications:

• Drill Presses: Many drill presses come equipped with a tapping function, allowing for controlled tapping with straight flute taps. This is ideal for simple tapping operations.
• Milling Machines (with Rigid Tapping): Milling machines with rigid tapping capabilities offer more precision and control for tapping compared to drill presses. This is suitable for tasks requiring higher accuracy.

CNC Machines:

• CNC Milling Machines (VMCs): These versatile machines can perform tapping alongside other machining operations, streamlining the production process for parts requiring threaded holes.
• CNC Lathes (with Live Tooling): Lathes with live tooling can leverage straight flute taps to create threaded connections perpendicular to the centerline of a part, such as on the side of a pipe or fitting.
• Dedicated Tapping Machines: For high-volume tapping applications, specialized machines offer fast cycle times and automated tool changes, maximizing efficiency.

Other Equipment:

• Tapping Heads: These heads can be mounted on drill presses or older CNC machines without rigid tapping. They provide safety features and better tap control for more demanding tasks.
• Tool Holders: The choice of toolholder (e.g., ER collet chuck, quick-change tapping chuck) affects factors like tap rigidity, precision, and misalignment compensation.

Baucor has the cutting tool knowledge and engineering experience to help you find the perfect tap solution.

Potential Support Services:

• Tap Material Selection: Unsure if HSS, cobalt HSS, or another material is best for your workpiece? Baucor's experts can guide you to the ideal tap for your application.
• Choosing the Right Thread: Need a coarse or fine thread? Metric or Unified? Baucor helps you achieve the optimal threads for your project's requirements.
• Tap Customization: Does your project need a specialized straight flute tap? Baucor's engineering team might be able to create a custom tap to perfectly match your specifications.
• Application Optimization: Get recommendations on coatings, tapping speeds, lubrication, and more from Baucor's engineers to boost your tapping efficiency and tool life.

Understanding Straight Flute Hand Tap Design for Optimal Threading

While there's no single design bible for straight flute taps, understanding key principles and standards will help you choose the right tool:

Key Design Elements

• Material Matters: High-speed steel (HSS) is the standard, but tougher materials may need cobalt HSS or PM HSS taps. Check your workpiece requirements!
• Shank Size: Standardized shanks fit common tap wrenches and machine chucks. Ensure compatibility with your equipment.
• Straight Flutes: These are ideal for short-chipping materials. Remember, they might limit chip removal in through holes compared to spiral flutes.
• Thread Design: Accuracy is everything! Thread form standards (ISO, ANSI) dictate the precise shape, size, and tolerances for interchangeability and proper fit.
• Coatings Enhance Performance: Titanium Nitride (TiN) and other coatings reduce friction and wear. These boost tap life, especially in tougher materials.
