PRECISION AND PERFORMANCE COMBINED
BALL NOSE END MILL SOLUTIONS!
PRECISION AND PERFORMANCE COMBINED
BALL NOSE END MILL SOLUTIONS!

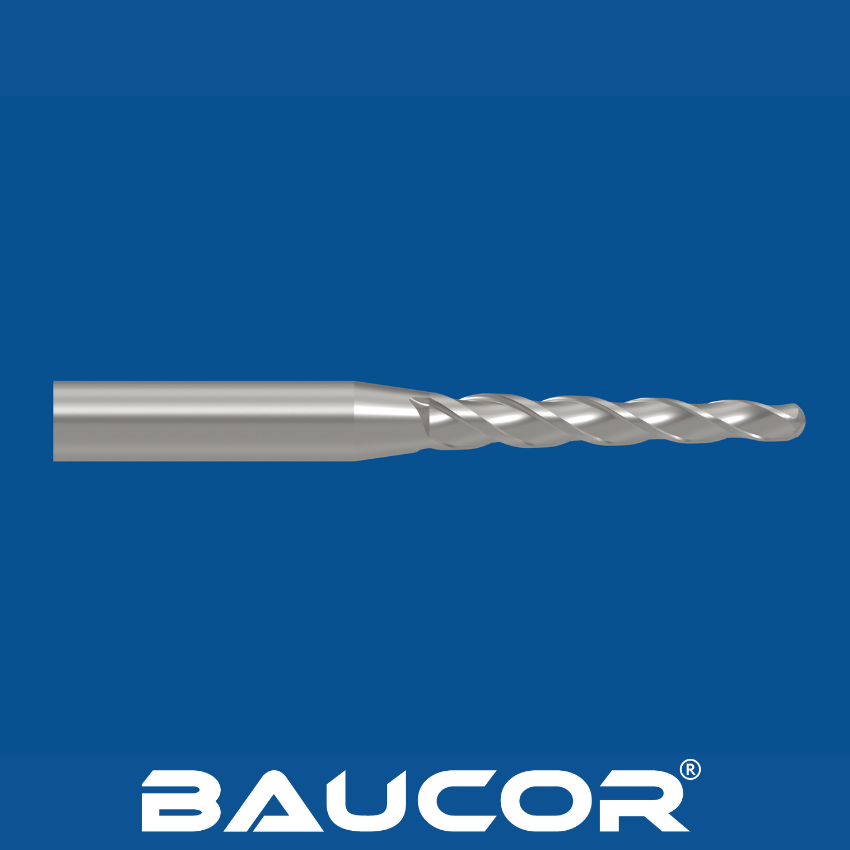

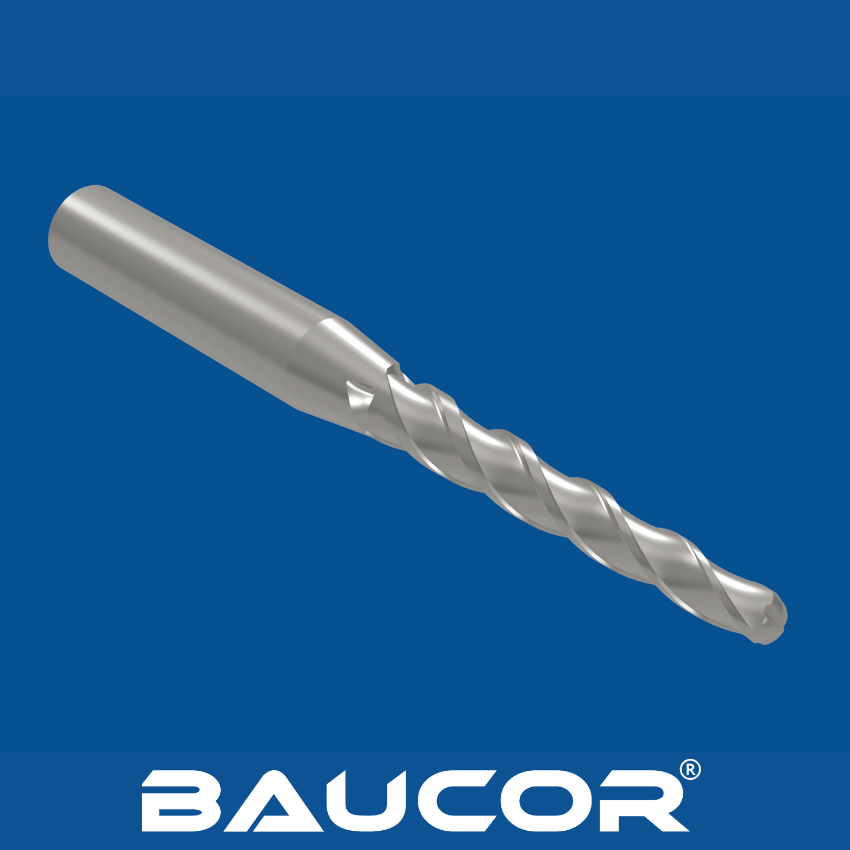

What is a Tapered Ball Nose End Mill?
A Tapered Ball Nose End Mill is a specialized cutting tool with a tapered body and rounded tip, ideal for 3D contouring and smooth surface finishing in CNC milling and engraving applications.
Several defining characteristics:
CNC Programming: The tool path and cutting parameters are programmed into the CNC machine's control system.
Rotation and Feed: The tapered ball nose end mill is secured in the machine's spindle and rotated at high speeds. It's fed into the workpiece according to the programmed path.
Material Removal: The rotating cutting edges remove material from the workpiece, with both the ball nose tip and the tapered sides actively cutting.
Contouring: The ball nose shape allows for smooth, curved surfaces, while the taper provides clearance to machine angled sidewalls and deeper features.
Manufacturing Tapered Ball Nose End Mills: Precision and Complexity
Key Manufacturing Processes
If you're looking for tapered ball nose end mills , here are standard parameters you'll likely encounter:
Baucor can manufacture end mills to cater to a diverse range of milling applications, from general purpose milling tasks to the creation of intricate profiles and complex 3D shapes.
End mills are available in a variety of types, such as square end mills for creating sharp corners, ball nose end mills for smooth contouring, and roughing end mills for rapid material removal. Suitable for materials including metals, plastics, and composites, Baucor can produce end mills in highly specialized sizes and configurations tailored to meet your specific requirements. Please contact us for detailed information on dimensions and customization options to perfectly match your milling needs.
Common Materials for Tapered Ball Nose End Mills
Tungsten Carbide:
High-Speed Steels (HSS):
Types: M2, M7, T15, and cobalt-containing grades such as M35 and M42 may be used in special applications.
Benefits: Good toughness and cost-effectiveness for lower-demand scenarios or machining softer materials.
Limitations: Lower wear resistance and hot hardness compared to carbide, limiting their use in high-speed or abrasive material machining.
Factors Influencing Material Selection
Common Coating Options
Factors to Consider
Baucor's Potential Expertise
While Baucor may not directly coat tapered ball nose end mills, our machining knowledge could be relevant:
Key Areas of Use
Tapered ball nose end mills excel in applications where their unique shape provides advantages:
Mold and Die Making:
Aerospace and Automotive:
Medical Manufacturing:
Prototyping and Sculpting:
Roughing out and finishing 3D shapes in wood, plastics, and softer metals for prototypes, models, or artistic sculptures.
General Machining:
Why Tapered Ball Nose End Mills Are Essential
Key Sectors Utilizing Tapered Ball Nose End Mills
Tapered ball nose end mills are indispensable tools in industries where precision, contouring, and the ability to machine complex sidewalls are essential:
Mold and Die Making: A core industry for tapered ball nose end mills, used for:
Aerospace Manufacturing:
Automotive Manufacturing:
Medical Device Manufacturing:
Producing small, intricate parts for medical devices or implants, where precision, biocompatibility, and smooth finishes are crucial.
Why Tapered Ball Nose End Mills Are Preferred
Common Machine Types
Tapered ball nose end mills are primarily used in CNC machines for their precision and ability to execute complex 3D toolpaths:
Factors in Machine Selection
Optimize Your Tapered Ball Nose End Mill Designs with Baucor's Expertise
Beyond the Tool: Baucor's Support
As a world leader in precision machining, we understand that achieving optimal results with tapered ball nose end mills involves more than just a premium tool.
Geometry Optimization: Our engineers can advise on elements such as:
Coating Expertise: We advise on the suitability of coatings (TiN, TiAlN, DLC, etc.) to improve wear resistance, tool life, and performance in specific machining scenarios.
Machining Process Support: Our knowledge of material removal processes helps us suggest techniques or tool modifications that optimize efficiency and outcomes when using tapered ball nose end mills.
Focus on Precision: Baucor's emphasis on quality translates into supporting manufacturers in designing tapered ball nose end mills that meet the exacting standards of our customers.
Key Design Elements and Considerations
Ball Nose Diameter: Determines the smallest radius the tool can create and influences surface finish.
Taper Angle: Dictates sidewall clearance and depth capabilities. Common angles range from 1 to 15 degrees, with larger angles providing more clearance for deeper cuts.
Flutes:
Cutting Edge Geometry:
Rake Angles: Often neutral or slightly positive rake angles are used, optimized for the intended workpiece materials.
Relief Angles: Provide clearance and prevent rubbing.
Design Factors Influenced by Application
