Common Materials for Tapered End Mills

Tungsten Carbide:

• Grades: The most common choice. Different carbide grades offer a balance of hardness, wear resistance, and toughness optimized for various workpiece materials. Taper end mills may use slightly tougher grades than standard end mills to accommodate the stresses of their shape.
• Benefits: Excellent wear resistance, hot hardness, and performance in high-speed machining. Handles a wide range of materials, including hardened steels and abrasive alloys.
• Limitations: Higher cost compared to HSS and can be more susceptible to chipping if not used in rigid setups.

High-Speed Steels (HSS):

Types: M2, M7, T15, and cobalt-containing grades such as M35 and M42 may be used in special applications.

Benefits: Good toughness and cost-effectiveness for lower-demand scenarios or machining softer materials.

Limitations: Lower wear resistance and hot hardness compared to carbide, limiting their use in high-speed or abrasive material machining.

Powdered Metal (PM):

• Types: PM-HSS offers advantages over traditionally produced HSS.
• Benefits: Finer grain structure leads to enhanced toughness, wear resistance, and grindability compared to standard HSS.
• Limitations: Relatively higher cost compared to conventional HSS.

Factors Influencing Material Selection

• Workpiece Material: The hardness, toughness, and abrasiveness of the material being machined are primary considerations.
• Production Volume: Higher production runs often favor the extended tool life of carbide, justifying its cost.
• Machining Rigidity: Carbide can better utilize its superior performance benefits in rigid setups that minimize the risk of chipping.
• Specific Application: The desired surface finish, cutting speeds, and the complexity of the tapered contour can influence material choice.

Common Coating Options

• TiN (Titanium Nitride): A versatile, gold-colored coating offering general-purpose hardness and wear resistance improvements.
• TiCN (Titanium Carbonitride): A harder and smoother alternative to TiN, improving wear resistance and chip flow.
• TiAlN (Titanium Aluminum Nitride): Provides excellent hot hardness and oxidation resistance, ideal for high-speed machining in tougher materials and for tapered end mills where heat buildup can be a concern.
• AlTiN (Aluminum Titanium Nitride): Similar to TiAlN with even greater hardness and oxidation resistance, suitable for machining very hard materials or demanding applications.
• Diamond-Like Carbon (DLC): Can be used on carbide tapered end mills, providing extreme hardness and very low friction for specialized applications, particularly with non-ferrous materials.
• Multilayer Coatings: Combining different coatings in layers can further tailor performance characteristics.

Factors to Consider

• Cost-Effectiveness: Coatings add cost. Their benefits should outweigh this for tapered end mills, especially where extended tool life and performance in difficult materials are key.
• Workpiece Material: The material being machined is crucial. Coatings offer the most benefit when machining hard, abrasive materials.
• Geometry: Coating complex tapered end mill geometries can be challenging. Uneven coating distribution could negatively affect performance.

Tapered end mills excel in applications where their unique shape provides advantages:

Mold and Die Making:

• Creating slots with angled side walls within molds or dies.
• Machining complex 3D shapes and contours where a tapered profile is needed.
• Finishing molds with tight tolerances and smooth surface finishes on angled features

Aerospace and Automotive:

Machining angled slots or widening existing slots in complex components.

Creating sculpted surfaces with smooth transitions where the taper facilitates machining.

• General Machining:
• Angled sidewall finishing in a variety of materials
• Widening slots or pockets
• Chamfering at specific angles

Why Tapered End Mills Are Essential

• Angled Machining: The tapered profile allows for the creation of angled features that standard flat end mills cannot achieve.
• Clearance: The taper provides clearance for deeper cuts with angled sidewalls.
• Finishing: Tapered end mills can be used for both roughing and finishing operations, depending on the size of the tool and the desired surface finish.

Key Sectors Utilizing Tapered End Mills

Tapered end mills are indispensable tools in industries where precision, the ability to machine angled features, and complex sidewalls are essential:

Mold and Die Making: A core industry for tapered end mills, used for:

• Creating intricate molds for plastics, composites, die casting, etc., where angled features are common.
• Machining precise slots and pockets with angled sidewalls within molds or dies.
• Achieving smooth surface finishes on complex, angled mold surfaces.

Aerospace Manufacturing:

• Creating angled slots, pockets, and sculpted surfaces with tight tolerances.
• Machining hard aerospace alloys and demanding part geometries where the taper is essential.

Automotive Manufacturing:

Machining sculpted surfaces, complex curves, and angled features found in engine components, body panels, and more.

Widening existing slots or pockets at specific angles.

General Machining:

• While less frequent than the above industries, tapered end mills find use in general machining shops for angled sidewall finishing, slot widening, and unique chamfering tasks.

Why Tapered End Mills Are Preferred

• Angled Features: The tapered design is uniquely suited for machining slots, sidewalls, and surfaces with angles that standard end mills cannot create.
• Clearance: The taper provides clearance for deeper cuts and more complex angled machining.
• Versatility: Tapered end mills can handle both roughing and finishing operations depending on the tool's size and machining parameters.

Common Machine Types

Tapered end mills are primarily used in CNC machines for their precision and ability to execute complex toolpaths that utilize the tool's angled profile:

• CNC Machining Centers: The most common machine type for tapered end mills.
• 3-Axis Milling Machines: Suitable for basic angled sidewall machining and slot creation.
• 4 & 5-Axis Milling Machines: Provide additional axes of rotation, allowing for even more complex shapes, angled features, and undercuts.

Factors in Machine Selection

• Workpiece Complexity: The complexity of the angled features and number of axes required dictates the machine type (3-axis vs. multi-axis).
• Workpiece Material: Harder materials may necessitate more robust and rigid machines to handle the cutting forces.
• Tolerances: Tight tolerances often favor CNC machining centers for their precision, accuracy, and control.
• Production Volume: Specialized, high-volume production may justify dedicated machines optimized for tapered end mill operations, though this is less common.

Optimize Your Tapered End Mill Designs with Baucor's Expertise

Beyond the Tool: Baucor's Support

As a world leader in precision machining, Baucor understands that achieving optimal results with tapered end mills involves more than just a premium tool. While specialized tapered end mills might be outside our core offerings, here's how we could support this area:

• Materials Consultation: We guide manufacturers and users on the ideal materials (carbide grades, etc.) to match specific workpiece materials, performance demands, and production volumes.
• Geometry Optimization: Our engineers can advise on elements such as:
• Taper angle selection for the intended application and optimal clearance.
• Flute design and helix angle for efficient cutting and chip evacuation on various materials.
• Cutting edge geometry for optimal performance in specific materials.
• Coating Expertise: We advise on the suitability of coatings (TiN, TiAlN, DLC, etc.) to improve wear resistance, tool life, and performance in specific machining scenarios.
• Machining Process Support: Our knowledge of material removal processes helps us suggest techniques or tool modifications that optimize efficiency and outcomes when using tapered end mills.
• Focus on Precision: Baucor's emphasis on quality translates into supporting manufacturers in designing tapered end mills that meet the exacting standards of our customers.

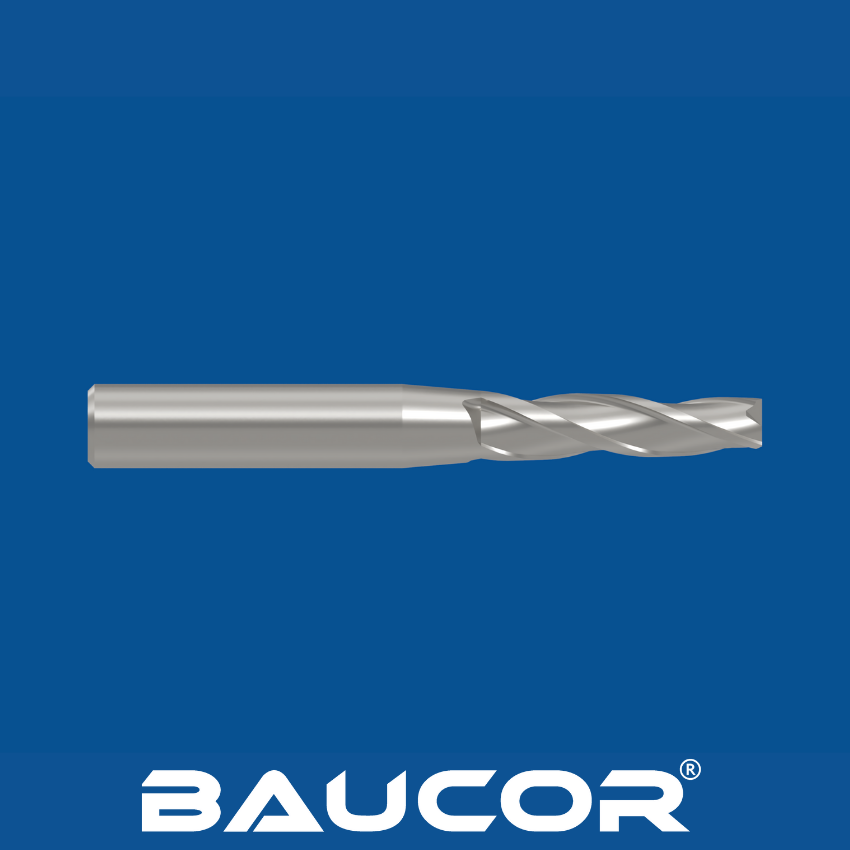

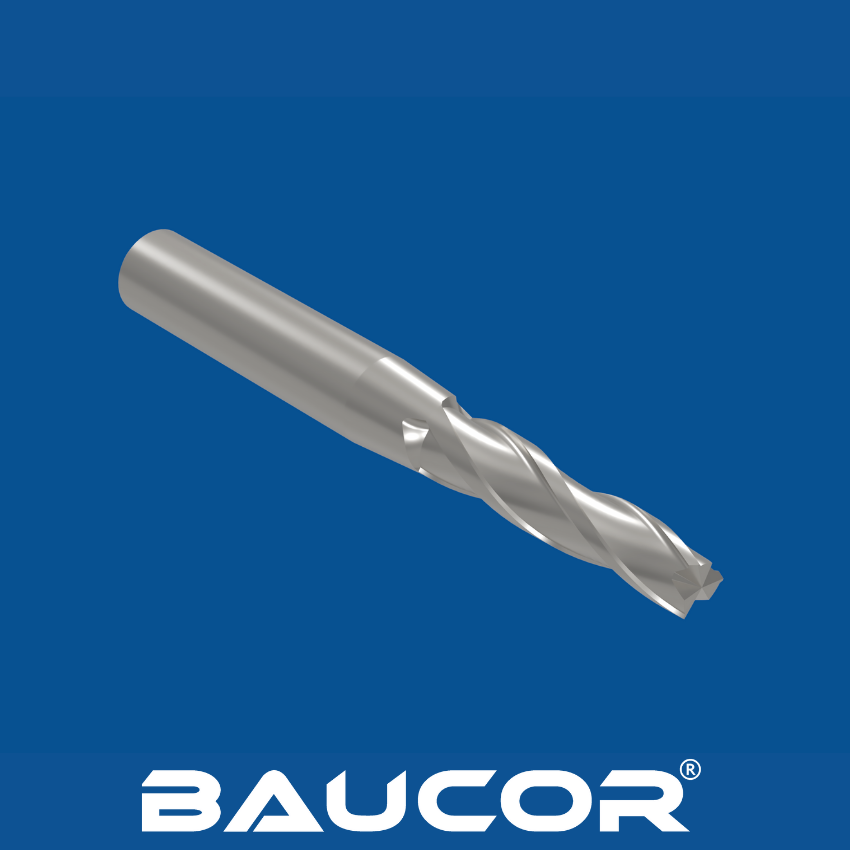

Key Design Elements and Considerations

Cutting Diameter: The diameter at the flat cutting end determines the smallest feature size the tool can create.

Taper Angle: Dictates sidewall clearance and depth capabilities. Common angles range from 1 to 15 degrees, with larger angles providing more clearance for deeper cuts.

Flutes:

• Number of Flutes: Influences chip load and cutting smoothness. More flutes are generally better for harder materials but may limit strength with small tapered end mills.
• Helix Angle: Impacts chip evacuation and cutting action. Steeper helix angles may be used for softer materials for efficient chip removal.

Cutting Edge Geometry:

Rake Angles: Often neutral or slightly positive rake angles are used, optimized for the intended workpiece materials.

Relief Angles: Provide clearance and prevent rubbing.

• Shank Design: Ensures proper fit and rigidity in the machine tool holder. Common types include straight shanks and Weldon shanks.
• Material: Tungsten carbide (various grades) is standard for its wear resistance and rigidity. HSS may be used in special applications with softer materials.

Design Factors Influenced by Application

• Workpiece Material: Harder materials necessitate tougher carbide grades, potentially different coatings, and may require adjusted geometries for optimal cutting.
• Feature Complexity: The shape, depth, and angles of features influence the cutting diameter, taper angle, and overall tool design.
• Tolerance Requirements: Tight tolerances might require specific geometries, materials, and a focus on machine rigidity.
• Production Volume: Influences material and coating choices for optimizing tool life and cost-effectiveness in a given production environment.
