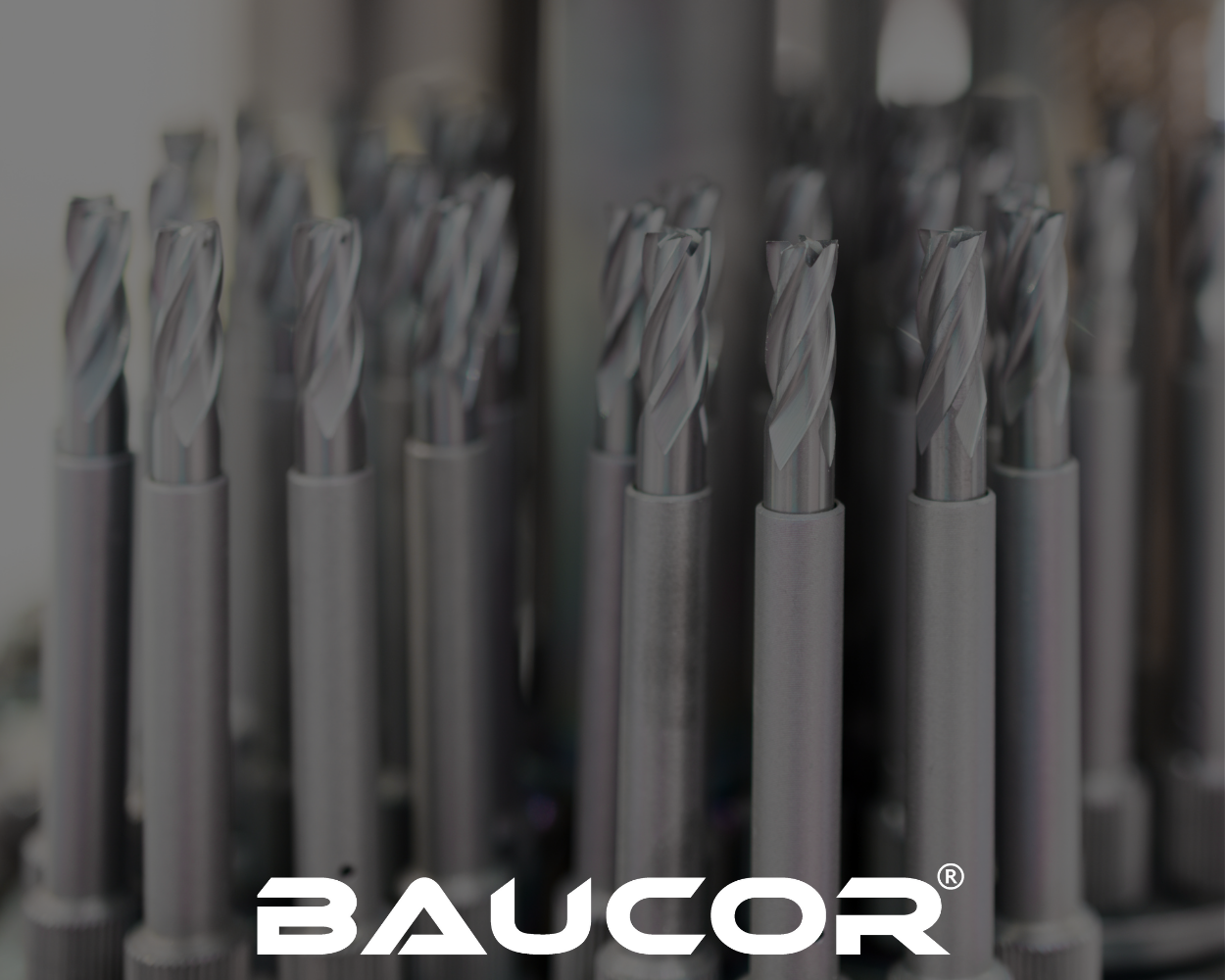

How Milling Tool Design Influences Speed and Accuracy in CNC Operations

CNC milling serves as a revised version of the conventional milling process that used to adopt the use of an end mill cutter to undergo the machining operation. CNC machining accuracy is one of the prominent factors in the milling process. Many people are concerned about this factor when it comes to conforming to quality requirements. If CNC operations work speedily and with high accuracy, it helps the particular organization streamline many of its CNC-related tasks. Thus, optimizing these factors helps such organizations perceive business growth. Let’s understand various ways in which CNC milling tool design affects accuracy and speed in CNC operations.

Ways in which Milling Tool Design Affects CNC Operations

i. Flexibility of components

If the components of a CNC milling machine are flexible, they can perform more efficiently and contribute to the overall accuracy. In the CNC milling tool design, the component flexibility depends on the type of work the machine is designed to undertake. The components should be able to handle various tasks, like tapping and drilling, slots and grooves, holes, and pockets.

One of the essential components of a CNC milling tool is the frame that enables movements and vibrations in the tool. It is better if the frame is made of cast iron or some other material possessing good damping properties. Moreover, it can be filled with epoxy granite to decrease vibrations and noise which will eventually make CNC operations more accurate.

Before milling a part in the machine, it should be programmed with CAD software and then need to be translated into G-code using CAM (Computer-Aided Manufacturing) software. The corresponding code indicates the movement of the cutting tool and even depicts other factors that suggest how speedily the machine can cut the material. Contacting Baucor lets you access a broad array of high-speed milling tools used in various CNC operations and thus you can best meet your needs.

ii. Tool material

The material used in the CNC milling tool can affect its toughness, hardness, and wear resistance. Optimizing these properties can boost the speed of CNC operations. Some of the common tool material options that are used in high-speed milling tools are high-speed steel (HSS), carbide, and ceramic.

If a CNC milling tool is made of HSS then it is suitable for accomplishing general-purpose milling; however, it may not support high-speed operations. To ensure fast-speed CNC operations, carbide is considered as it provides higher wear and hardness resistance. Besides, ceramic material is also a preferred choice as it is extremely resistant to hardness and wear, being suitable for high-speed CNC machining operations. CNC milling tools made of carbide or ceramic can make CNC operations faster and reduce the chances of errors. Hence, those milling tool solutions that use such materials can streamline their CNC operations.

iii. Tool coatings

Coating is one of the important aspects of CNC milling tool design. Tool coatings can improve the performance and accuracy of CNC operations by decreasing friction, improving hardness, and also improving heat resistance. In this context, Titanium Nitride (TiN) is usually preferred since it decreases friction and increases hardness. Besides, Aluminum Titanium Nitride (AlTiN) is preferable for high-speed milling tools because it offers excellent hardness and heat resistance, so is suitable for high-speed CNC machining operations.

iv. Narrow depth of cuts

Focusing on the depth of cuts can largely impact the functioning of CNC operations. Generally, a good design practice is to ensure that the final depth of cut must not surpass certain ratios, depending on the material to be processed. Suppose, let’s take an example –with steel, the ratio must be less than 5 times the diameter of the end mill. The reason is a design that shows longer tools are more vulnerable to vibration and deflection, leading to inaccuracy. So, if you want your CNC milling tool to offer high accuracy then consider the narrow depth of cuts. Fulfilling your specific needs related to milling tools for CNC operations is possible by contacting Baucor.

v. Considering large internal radii

During the design phase, the size of the cutting tool used in CNC mills must be considered. Generally, a larger cutter cuts away more material in one pass, and this speeds up CNC operations. So, to make the most of the larger cutters’ capabilities, internal corners, and fillets must be designed with the largest possible radius. If the radius is smaller, it demands switching to smaller tools that will take more time and costs as well. Therefore, focusing on the larger internal radii during the design phase is recommended for making CNC operations faster and more accurate.

vi. Use of lubrication and coolant

The performance of CNC milling tool solutions can be increased with the proper use of lubrication and coolant. Coolant decreases friction and heat and thus improves surface finish which will make the CNC operations faster. Lubrications promise smooth cutting and reduce wear and tear on the milling tool. So, with reduced wear and tear, the CNC operations become more accurate. Baucor competently works on milling tool solutions and even provides seamless engineering support fulfilling the customer’s demand.

vii. Focusing on tool dimensions

Length and diameter are two key aspects of CNC milling tool design. These factors affect the rigidity and stability during machining. Larger tool diameter offers greater stability and eventually makes CNC operations faster. Using milling tools with shorter diameters can provide better rigidity and high accuracy.

Conclusion

To achieve accurate and high-speed CNC operation, the milling tool design is a vital factor. By optimizing tool material, coatings, clamping positions, and various other factors as discussed, manufacturers can improve the overall efficiency of the CNC machining tools. Using accurate and high-speed milling tools can help in business growth.
