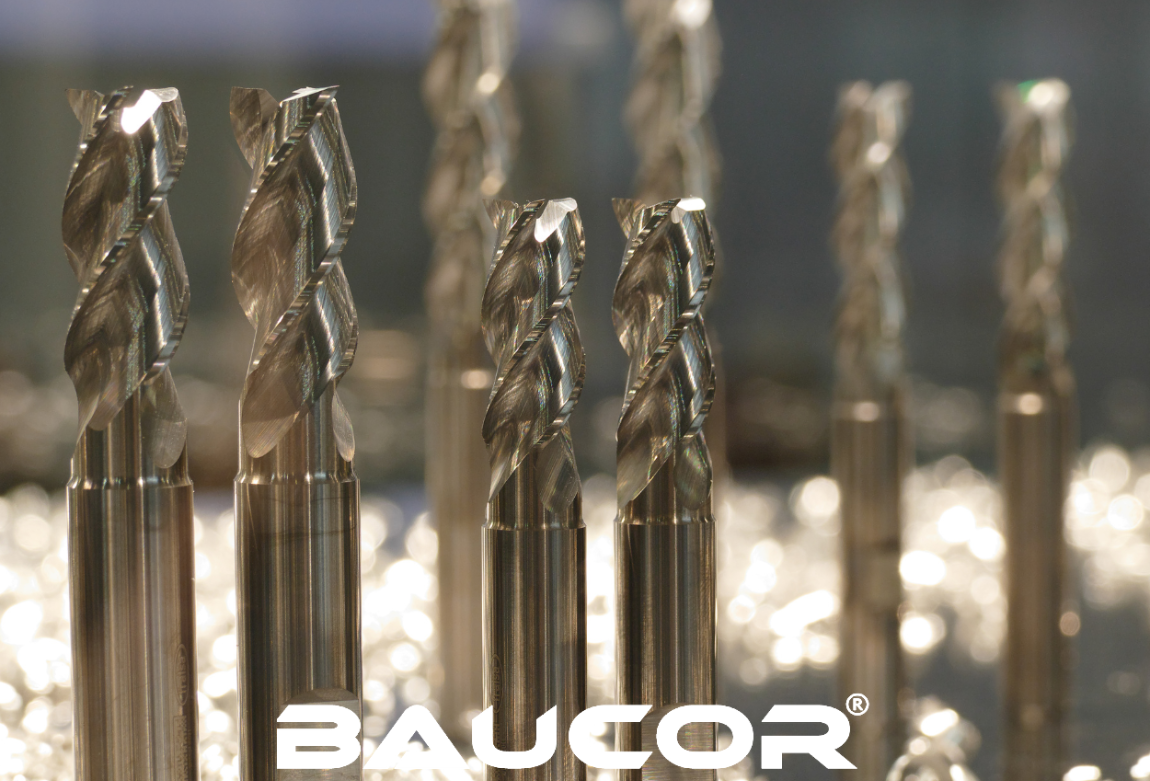

Quality Control in Milling Tool Manufacturing: Standards That Drive Performance

Quality Control in Milling Tool Manufacturing: Standards That Drive Performance

In the industrial environment of today, precision and reliability are an essential part of machining. Each milling tool is a cutting tool; they take material away from workpieces. Cutting tools are utilized in various industries such as automotive, aerospace, wood, and manufacturing. Quality control is the key to ensuring that the tools within these industries perform reliably. This article examines how quality control procedures and standards are utilized in the context of milling tool manufacturing concerning performance and customer satisfaction criteria, as well as innovations in milling tool design and Milling Tool Solutions that complement the performance designs for end-users.

The Role of Quality Control in Milling Tool Manufacturing

There are several steps involved in the making of a milling tool or part: selecting raw materials, design, forging or sintering, machining, heat treatment, coating, and inspection. At each step, there are chances for mistakes that will jeopardize the tool's integrity and performance. Quality control (QC) provides a shield that allows inspection and verification of pre-defined steps.

Quality control is not simply defect detection; it is the establishment of a continuous improvement culture. The tooling business is competitive; manufacturers who incorporate strict QC processes into their daily routines can say they make reliable tools for their customers, thereby reducing machining time and scrap rates.

Key Standards That Govern Quality

International standards, such as those set by the International Organization for Standardization (ISO), serve as benchmarks for milling tool manufacturing. Some of the most relevant standards include:

• ISO 9001: This general quality management system standard ensures that companies maintain a systematic approach to quality across all operations.


• ISO 13399: This standard supports the digital representation of cutting tools, enabling accurate data sharing and consistency in CAD/CAM environments.


• ISO 513: Focuses on tool material classification, helping manufacturers choose the right cutting materials based on application needs.


• DIN and ANSI standards: Regional standards that define the dimensional tolerances and performance expectations for milling tools.

Manufacturers who comply with these standards not only deliver consistent products but also instill confidence in customers seeking dependable milling tool solutions.

Precision in Milling Tool Design

A quality milling tool design is the basis for any high-performance milling tool. Quality starts at the drawing board. Engineers will think about design issues such as the geometry of the tool, flute design, cutting edge angle, chip evacuation design, and coatings. The designers will consider as much as they can, which influences the final work piece's cutting performance, tool life, and compatibility with various materials.

The usage of advanced CAD and simulation software is also valuable for designers when predicting the behavior of the tool. Dynamic load simulations of the tool are very useful for calculating the best tool path and limiting the likelihood of chatter and premature wear. Using these technologies increases performance and also allows them to provide duplicate quality by catching design flaws early.

Ensuring quality control protocols throughout the milling tool design process will ensure that the final part performs and is measured against industry and predetermined expectations. By using this early intervention, you are also able to shorten the development process and loss of a validated product through pre-production defects.

Quality Control Techniques in Manufacturing

Effective quality control in milling tool manufacturing employs a combination of traditional inspection and modern technologies. Some of the most critical techniques include:

1. Incoming Material Inspection

Before manufacturing begins, raw materials like high-speed steel (HSS) or tungsten carbide are inspected for purity, composition, and grain structure. Defects at this stage can lead to premature tool failure or poor cutting performance.

2. In-Process Monitoring

Throughout the manufacturing process, in-process monitoring ensures dimensional accuracy and adherence to design specifications. Sophisticated machines with in-line sensors and CNC control maintain tolerances to micrometer levels.

3. Final Inspection

After production, each milling tool undergoes thorough inspection using devices such as:

• Coordinate Measuring Machines (CMMs)


• Optical profile projectors


• Surface roughness testers


• Hardness testers


• Coating thickness gauges

These tools verify critical parameters like flute length, helix angle, and cutting edge geometry, ensuring that each tool conforms to its intended application.

4. Performance Testing

Random samples are subjected to cutting tests under simulated real-world conditions. These tests measure parameters such as tool wear, surface finish on the workpiece, and thermal stability.

Digital Integration and Smart Manufacturing

Modern milling tool manufacturing has accepted Industry 4.0 technologies and invested in some degree of sensors and IoT devices to connect with machine learning incorporated into Quality Control processes. Real-time data collection from CNC machines allows manufacturers to perform predictive maintenance and recognize defects much sooner.

Utilizing IoT tools along with digital twins assists manufacturers in simulating the entire life cycle of the finished product and can verify how the milling tool performs under loads or speeds, etc. Many manufacturers are shifting to less reactive to less predictive quality control; thus, milling tool solutions will evolve positively.

Traceability and Certification

Traceability is a central element of quality control. Each milling tool has a unique identifier that tracks its whole journey: from the batch of material used and heat treatment records to coating information. This ensures accountability and enables rapid identification of the root cause in consideration of defects.

Leading manufacturers also provide certification with the product, demonstrating compliance under applicable standards. Customers in industries such as aerospace, where tool performance is important to safety, usually require such documentation.

Continuous Improvement and Feedback Loops

Quality control doesn't stop once the milling tool is sold. User feedback from machinists, engineers, and QA teams provides opportunities to improve milling tool designs for future production. Manufacturers with a closed-loop system for feedback can adapt to market concerns and innovate more effectively.

Also, regular quality audits and process reviews will provide opportunities to find and fix inefficiencies. Six Sigma and Kaizen are excellent examples of tools and processes that can help promote a mindset of continuous improvement culture in milling tool production environments.

Conclusion

Within the scope of precision machining, quality assurance is not a choice; it is the foundation for productive milling tool manufacturing. Every segment of the manufacturing chain, from raw material selection to final inspection and performance testing, must be controlled for consistent quality, ensuring that the tools perform optimally and last longer.

Manufacturers that can meld effective quality assurance systems to facilitate great milling tool design and cutting-edge milling tool solutions are not only improving product reliability, but they are also expanding the limits on what these tools can do. Want to learn how our solutions can support your manufacturing goals? Contact us today to start the conversation. These tools are helping industries across the globe rise to the challenge of precision, speed, and sustainability in manufacturing today.
