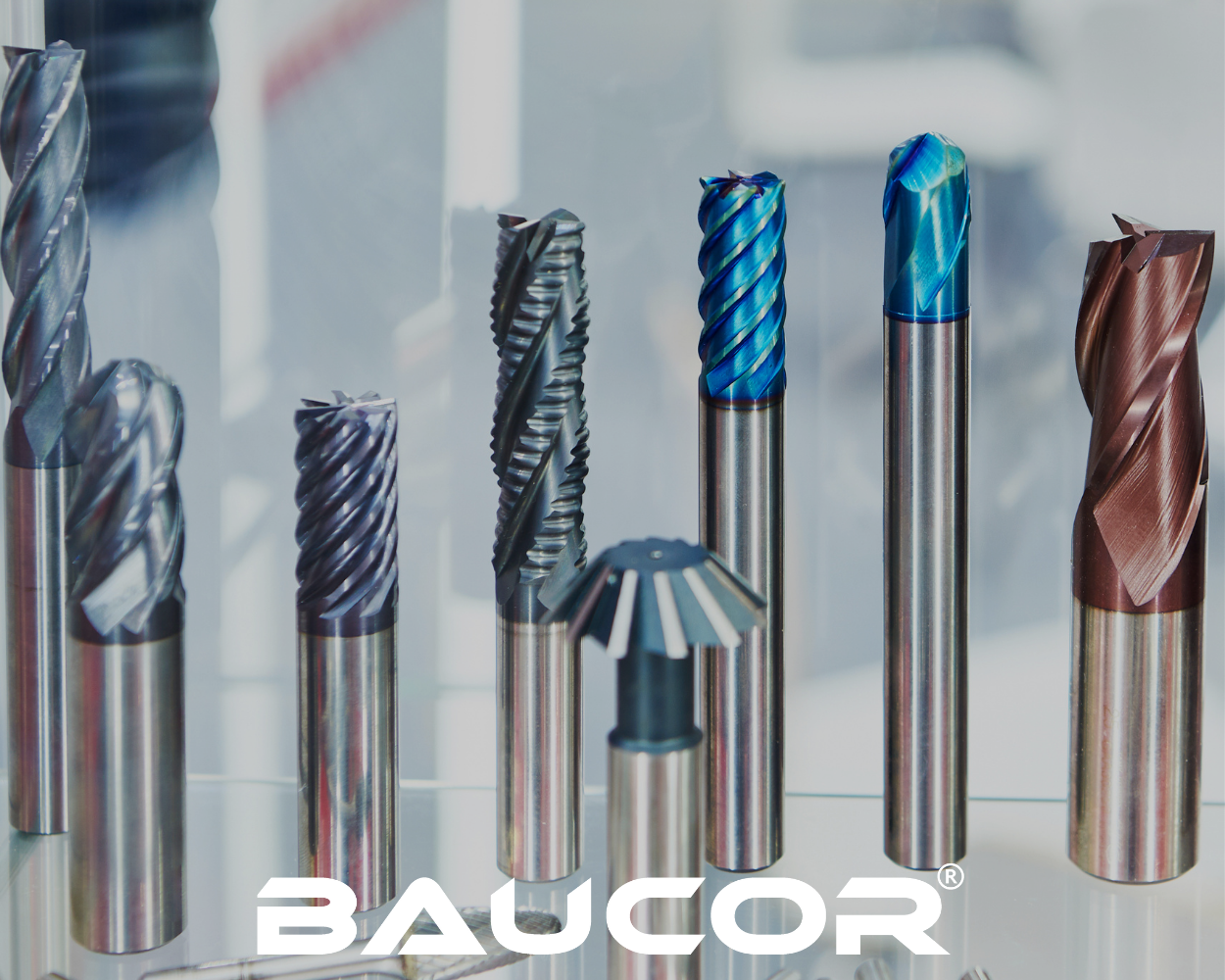

Selecting the Right High-Speed Milling Tools for Any Machining Task

Milling tools are pivotal when it comes to streamlining machining tasks. They are rotating tools equipped with one or multiple cutting edges to make the machining operations efficient. They are primarily used for machining stepped surfaces, flat surfaces, formed surfaces, grooves, and even cutting workpieces. The selection of appropriate cutting tools and adjusting proper cutting parameters can help attain the best machining results without spending much. The corresponding careful selection can make the manufacturing process more productive and precise. The below sections clear your confusion on how you can choose the most appropriate high-speed milling tools to accomplish any machining tasks.

How to Choose High-Speed Milling Tools for Machining Tasks

1) Choice of the milling tool body

Since milling tools are expensive, it is imperative to carefully choose the body construction to meet particular processing needs. One of the vital considerations is the number of teeth. Note that the dimensions of the tooth pitch affect the number of cutter teeth to be used in cutting and milling. Subsequently, it affects the smoothness of the cut and the cutting rate. Every milling tool manufacturer that specializes in high-speed milling tools has its collection of dense and coarse tooth milling tools to meet different requirements.

Primarily, milling tools with coarse-tooth are used to handle rough machining as they contain a big chip flute. The presence of a big chip flute will not create difficulty in chip curling. Also, it will not create much friction between the cutter body, the chip, and the workpiece. The milling tool design is important to consider because, at the same feed rate, a coarse-tooth milling tool comes with a larger cutting load per tooth than that of a dense-tooth milling tool.

For machining tasks that need a larger feed rate, a milling tool with a close-tooth design is preferable. The reason is during fine milling, the cutting depth is usually shallow, and the cutting load per tooth is tiny. Moreover, the required power is not extremely high. Baucor excels at milling tool manufacturing and provides satisfactory outcomes across various industries.

2) Selecting milling tools with long lifespan

It is vital to understand the importance of tool lifespan as it directly affects the overall efficiency of a machining task. The tool’s life decides the quality of the finished products and the efficiency of the cutting process being used. It is defined as the period during which a tool doesn’t need replacement. The prolonged tool life depicts less number of replacements and ultimately fosters ongoing operations. So, it minimizes interruptions during milling tool manufacturing.

Milling tool's long lifespan leads to a decrease in labor and material expenses and simultaneously increases focus on precision and quality standards. Choosing high-speed milling tools having long lifespans can assist in proper planning for preventive maintenance and better handling of available stocks. So, these kinds of durable milling tools can make a particular manufacturing process effective and efficient. You can contact Baucor to access various efficient milling tools utilized in CNC operations to make them efficient and precise.

3) The choice of tool materials

Before finalizing a milling tool, it is vital to compare tool materials to determine performance. Go through the prevailing industry insights about tool materials’ performance. Generally, High-speed steel (HSS) is well-known for featuring a good blend of hardness and toughness. This material is often used in those milling tools that are designed to be exposed to mechanical stress and heat.

Tools prepared from tungsten carbide are sturdy and heat-resistant; however, they are more brittle. They are useful in high-speed cutting tasks. They improve the surface finishing and overall efficiency of machining tools.

Ceramic-made machining tools provide high-temperature resistance and superb hardness. Notwithstanding these benefits, the milling tool design is such that they can be brittle, so they are more appropriate for high-speed cutting of hard materials.

These properties of different materials indicate their best suitability in a machining landscape. Assessing these properties helps you choose a suitable material that improves the performance of high-speed milling tools.

4) The choice of milling tool blade

Assessing the milling tool design based on the blade structure can help you make a better selection. If a machining task involves fine milling then it is recommended to use a grinding insert. Such inserts come with an excellent dimensional accuracy that provides improved positioning precision of the corresponding cutting edge. They also boost the surface's finish and task's accuracy.

A pressed insert may be more suitable for some machining tasks whereas other tasks may be accomplished well using a ground insert. For example, a pressed insert is more suitable for roughing operations because it reduces processing costs.

If the milling task involves viscous materials, like stainless steel, then you can go for sharp large rake angle inserts. Their sharp blade decreases friction between the workpiece and the blade, so chips can more rapidly leave the front part of the blade.

Installing a pressed insert within the blade seat and then configuring a grinding scraping insert is recommended in most milling tools. By using a scraping insert, rough machining marks can be removed and thus surface roughness will be better than solely using a pressed insert. Baucor provides competent milling tool solutions and even smooth engineering support that fulfills the customers’ expectations.

Conclusion

It is the careful selection of milling tools that can streamline the efficiency of the milling tool manufacturing process. The careful selection of milling tool material, blade, tool body, and milling accessories can help you handle any machining task. Besides, choosing an efficient milling tool with a long lifespan can save you costs and provides versatility as it can handle a wide range of machining tasks in diverse industries. With our understanding in milling tool manufacturing and milling tool design, Baucor is your go-to companion for precision CNC tooling solutions. Contact us for machining operations with a high-speed overall performance machine designed for durability and accuracy.
