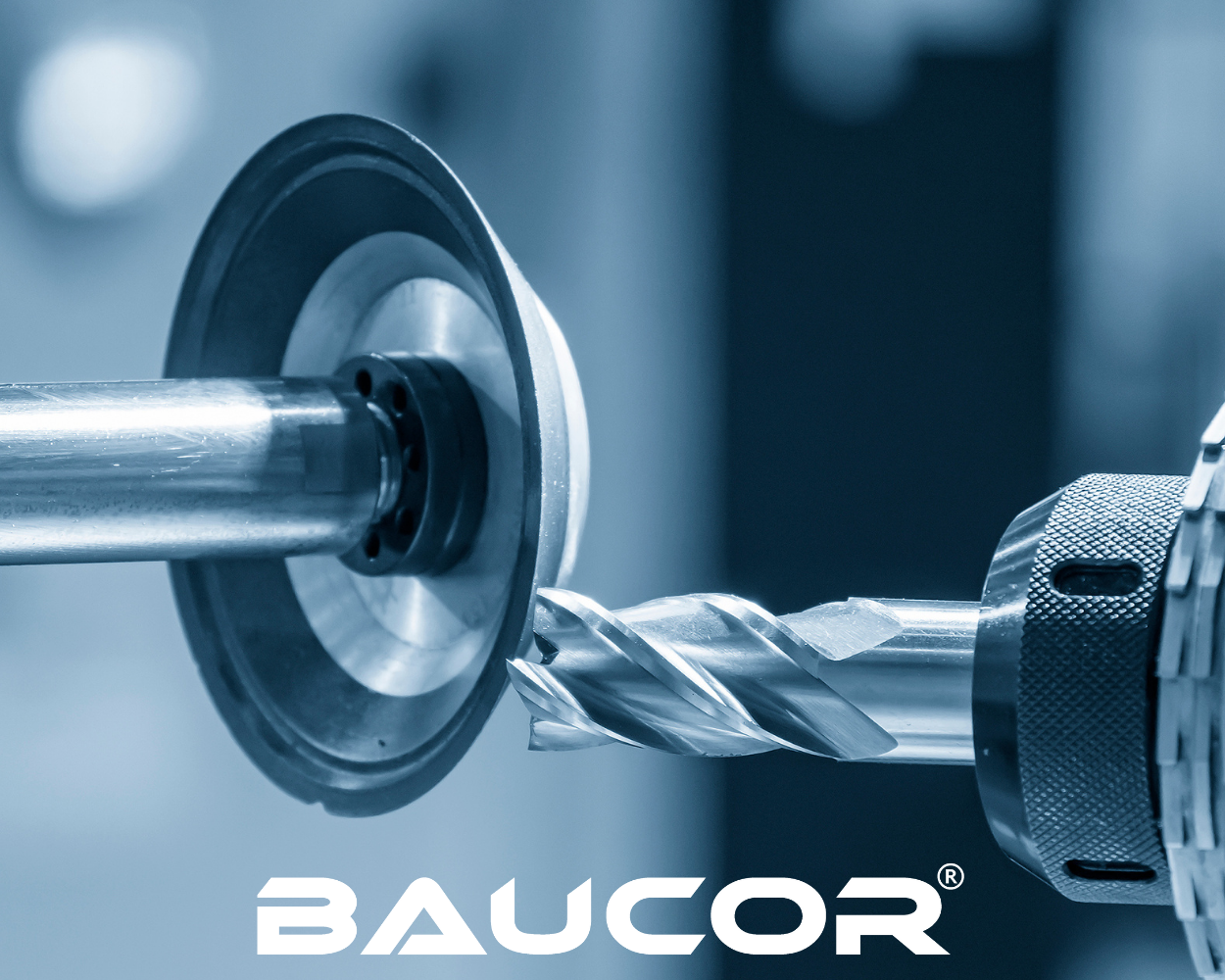

Miniature End Mills

Techniques to Enhance Productivity with Miniature End Mills

Irvine, California, U.S.A - Mannheim, Germany

Strategies for Maximizing Efficiency with Miniature End Mills

The modern miniature end mills are integral tools in precision manufacture and aid in the production of small but complex parts for various industries from medical devices to aerospace and mold making. Mastering these specialized tools can result in improved efficiency, accuracy, and performance of manufacture. In this post, we discuss Techniques to Boost Productivity using Miniature End Mills.

Choosing the Proper Tool for Maximum Effectiveness

The building block of effective miniature milling is tool selection. Miniature end mills are available in many forms, including ball nose, square end, and multi-flute styles. In using these accuracy tools, the following critical points should be taken into account:

Material Matters

For best performance with miniature end mills, material choice is important. Solid carbide is usually the first choice for small-diameter tools because it has better rigidity and wear resistance. If higher performance is required, think about advanced coatings like TiAlN or AlTiN, which can really increase tool life and allow increased cutting speeds, particularly in hard materials.

Flute Configuration for Optimal Cutting

Multi-flute end mills can raise the productivity by considerable amounts in mini applications. The higher cutting edges provide a larger feed rate with excellent surface finish. But the chip evacuation is more critical as the tool diameter decreases. Where the material has a weld-like tendency on chips or deep pocketing, then fewer flutes should be utilized for satisfactory chip clearance.

Advanced Techniques for Miniature Milling

Optimizing Cutting Parameters

When using miniature end mills, normal cutting parameters may require adjustment. Consider the following strategies:

  1. Boost spindle speed to retain maximum cutting velocity

  2. Lower chip load to avoid tool deflection

  3. Apply high-speed machining methods where necessary

  4. Use climb milling whenever practicable in order to minimize cutting forces

Undercutting Strategies

Undercutting end mills call for certain methods for peak performance:

1. Entry Strategies

  • Employ helical interpolation for the first cut

  • Keep the chip load consistent while changing directions

  • Take ramp angles into consideration in relation to tool geometry

2. Depth Management

  • Progressive depth rise for stable cutting

  • Keep cutting forces under control at all times

  • Use correct step-over ratios

3. Tool Path Optimization

  • Program smooth moves between cuts

  • Prevent hard directional changes

  • Keep the chip load constant

Maximizing Tool Life and Performance

Proper Tool Holding

With miniature end mills of small diameters, accurate tool holding becomes even more essential. Use the following best practices:

  • Employ precision collet systems for miniaturized tooling

  • Have accurate runout control

  • Employ balanced tool assemblies for high-speed cutting

  • Have regular inspection and tool holder maintenance

Coolant Considerations

Effective coolant application can have a large effect on the performance of miniaturized end mills:

  • Employ high-pressure coolant where available

  • Use through-tool coolant in deep features as an option

  • Use mist cooling in some applications

  • Keep clean coolant to avoid contamination

Advanced Applications and Considerations

Micro-Machining Operations

When extending the limits of miniature milling:

  • Apply proper workholding strategies to avoid vibration

  • Apply correct measurement methods for verification

  • Take machine tool capability and limitation into consideration

  • Apply consistent programming strategies for small features

Quality Control

Maintaining consistent quality with miniature end mills requires:

  • Consistent quality with miniature end mills requires:

  • Tool wear monitoring on a regular basis

  • Application of in-process inspection where feasible

  • Safe handling and storage of miniature tools

  • Recording process parameters for repeatability

Coating Selection for Enhanced Performance

The choice of appropriate coating can significantly affect the performance and lifespan of miniature end mills. Familiarity with the properties and advantages of various coatings is important to maximize your machining processes.

Common Coating Solutions

Modern coating technology offers several standard options that provide excellent performance improvements:

  • TiN (Titanium Nitride) is a general-purpose coating that provides improved surface hardness with reduced friction in cutting operations. This traditional coating offers consistent wear resistance for most typical machining operations.

  • TiCN (Titanium Carbonitride) is one step ahead in performance over TiN with higher wear resistance and improved heat handling characteristics. This makes it particularly worthwhile in more demanding use.

  • TiAlN (Titanium Aluminum Nitride) is a coating technology breakthrough offering greater hardness coupled with outstanding heat and oxidation resistance. For small end mills under demanding conditions, this coating has the potential to greatly increase tool life.

  • AlTiN (Aluminum Titanium Nitride) is equal to TiAlN's superior properties, with excellent hardness and thermal resistance leading to excellent wear protection, especially important for Small-Diameter End Mills tools.


Specialized Coating Technologies

For especially tough applications, some specialized coating options exist:

  • AlCrN (Aluminum Chromium Nitride) outperforms in harsh environments with exceptional hot hardness and wear resistance. This coating is especially worth it when small end mills are required to carry out heavy-duty cutting.

  • Diamond Coatings are the state of the art in wear resistance technology. Though expensive, these coatings are priceless when cutting very abrasive materials with small-diameter tools.

  • Multilayer Coatings blend the strengths of various coating types (e.g., TiN/TiAlN multilayers) to produce tailored properties for a specific end use, providing a best-of-both-worlds option for demanding machining conditions.

Looking to the Future

As production continues to move in the direction of miniaturization, the need for effective miniature end mill use will only increase. Keeping up with cutting tool technology and using proper techniques guarantees maximum productivity and quality in your precision machining processes.

Miniature end mill applications are successful based mostly on the appropriate tool selection, good techniques, and ideal cutting conditions. Manufacturers, with these guidelines and in collaboration with experienced tooling partners, can obtain superior results from their precision machining processes.

For further details on our extensive selection of miniature end mills and specialized tooling solutions, call Baucor today. Our engineers are standing by to assist you in maximizing your precision machining processes.

Get a quote today and experience the excellence in performance and quality of our precision-drilled bits!
