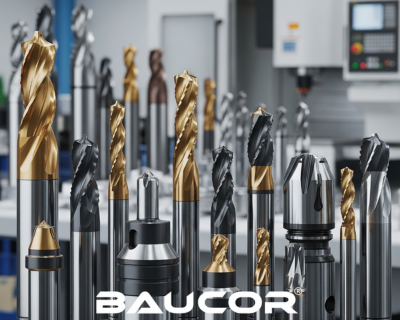

What type of CNC cutting tools do we use when CNC machining?

Types of CNC cutting tools utilized in the machining process

If you're involved in the world of manufacturing, engineering, or just appreciate the magic of precision, you've probably heard of CNC machining. It's the backbone of modern production, capable of churning out incredibly complex and accurate parts with dizzying speed. But what makes these incredible machines tick, or more accurately, cut? It all comes down to the unsung heroes: the CNC Cutting Tools.

The Maestro of Material Removal: Understanding CNC Cutting Tools

At its core, CNC (Computer Numerical Control) machining involves removing material from a workpiece to create a desired shape. This subtractive process is performed by various cutting tools, each with unique geometries, materials, and coatings, designed to excel in different operations and on different materials. The selection of the right tool is paramount for achieving optimal performance, tool life, and surface finish. Using the wrong tool is like trying to cut a steak with a butter knife – technically possible, but highly inefficient and frustrating!

The Workhorses of the Workshop: Common CNC Cutting Tools

Let's explore some of the most frequently used CNC Cutting Tools you'll find in a modern machining center:

1. End Mills: The Versatile All-Rounders

If there's one tool that's probably in every CNC milling machine's arsenal, it's the End Mill. These are cylindrical cutting tools with cutting edges on both their end and sides, making them incredibly versatile. They can move axially (plunging) and radially (side milling) to remove material. Think of them as the Swiss Army knife of milling.

Types of End Mills:

• Flat End Mills (Square End Mills): These have a flat bottom and sharp corners, making them ideal for creating flat surfaces, square shoulders, slots, and pockets. They're your go-to for general-purpose milling.

• Ball Nose End Mills: Featuring a hemispherical cutting tip, these are perfect for 3D contouring, sculpting, and creating smooth, curved surfaces. They're essential for mold making, aerospace components, and artistic designs. If you're making something organic or flowing, this is your friend.

• Corner Radius End Mills (Bull Nose End Mills): These are like flat end mills but with a small radius at the corners. This design helps to strengthen the tool, reduce chipping, and improve surface finish, especially in semi-finishing operations. It's the best of both worlds – strength and a smoother finish.

• Roughing End Mills (Corrugated/Serrated End Mills): These have wavy or serrated cutting edges designed to remove large volumes of material quickly. They leave a rougher finish but are incredibly efficient for initial material removal, often called "roughing." They're the muscle-bound brawlers of the end mill family.

• Tapered End Mills: As the name suggests, these have a cutting edge that tapers along its length. They are used for creating sloped walls, chamfers, and for machining deep cavities with draft angles.

Uses in CNC Machining:

End Mills are used for a vast array of operations, including:

• Profiling and contouring external and internal features.

• Creating slots and pockets of various shapes and depths.

• Drilling (plunge milling) and ramping (angled entry into material).

• Facing smaller surfaces.

2. Face Mills: The Surface Levelers

When you need to create a large, flat, and smooth surface, the Face Mill steps into the spotlight. Unlike end mills that cut with their periphery and end, face mills primarily cut with their face, which is positioned perpendicular to the workpiece surface. They often have multiple, interchangeable carbide inserts, allowing for high material removal rates and excellent surface finishes.

Key Characteristics and Uses:

• Multiple Inserts: Face mills typically feature several cutting inserts (often made of carbide) that are clamped onto a rigid tool body. When an insert wears out, it can be indexed (rotated to a fresh edge) or replaced, extending tool life and reducing costs.

• High Material Removal Rate: With multiple cutting edges engaging the material simultaneously, face mills are incredibly efficient for quickly removing large amounts of stock from broad surfaces.

• Superior Surface Finish: Due to their design and the widespread engagement of cutting edges, face mills can produce very flat and smooth surfaces, often suitable for finished parts or as a preparatory step for subsequent precision operations.

• Rigidity: Face mills are designed to be very rigid, minimizing vibration and chatter during heavy cutting.

Uses in CNC Machining:

Face Mills are predominantly used for:

• Flattening and squaring large surfaces on workpieces.

• Preparing surfaces for subsequent machining operations (e.g., drilling, tapping, or fine milling).

• Achieving precise dimensions and parallelism on large components.

3. Drill Bits: The Hole Makers

While seemingly basic, drill bits in CNC Machining Tools are highly specialized. They are designed to create cylindrical holes in a workpiece. CNC drilling operations demand precision, and various types of drill bits cater to different hole-making needs.

Types of Drill Bits:

• Twist Drills: The most common type, used for general-purpose hole drilling.

• Spotting Drills: Used to create a conical indentation, providing a precise starting point for subsequent drilling operations, preventing the main drill from "walking."

• Ejector Drills: Designed for deep hole drilling, efficiently evacuating chips.

• Center Drills: Used to create a center hole for turning operations on a lathe.

The Material World: What Are These Tools Made Of?

The performance of CNC Cutting Tools is heavily influenced by the material they are made from. Common materials include:

• High-Speed Steel (HSS): An economical choice, good for general-purpose machining of softer materials.

• Carbide (Tungsten Carbide):The dominant material for high-performance tools. It's much harder and more heat-resistant than HSS, allowing for higher cutting speeds and longer tool life, especially with exotic alloys and hardened steels.

• Ceramics: Extremely hard and heat-resistant, ideal for high-speed machining of cast iron and hardened steels.

• Cubic Boron Nitride (CBN): Second only to diamond in hardness, perfect for machining very hard ferrous materials.

• Polycrystalline Diamond (PCD): The hardest tool material, used for machining highly abrasive non-ferrous materials like aluminum, graphite, and composites.

Beyond the base material, various coatings (like TiN, TiAlN, AlCrN) are applied to tools to enhance their hardness, lubricity, wear resistance, and heat resistance, further extending their life and improving performance.
