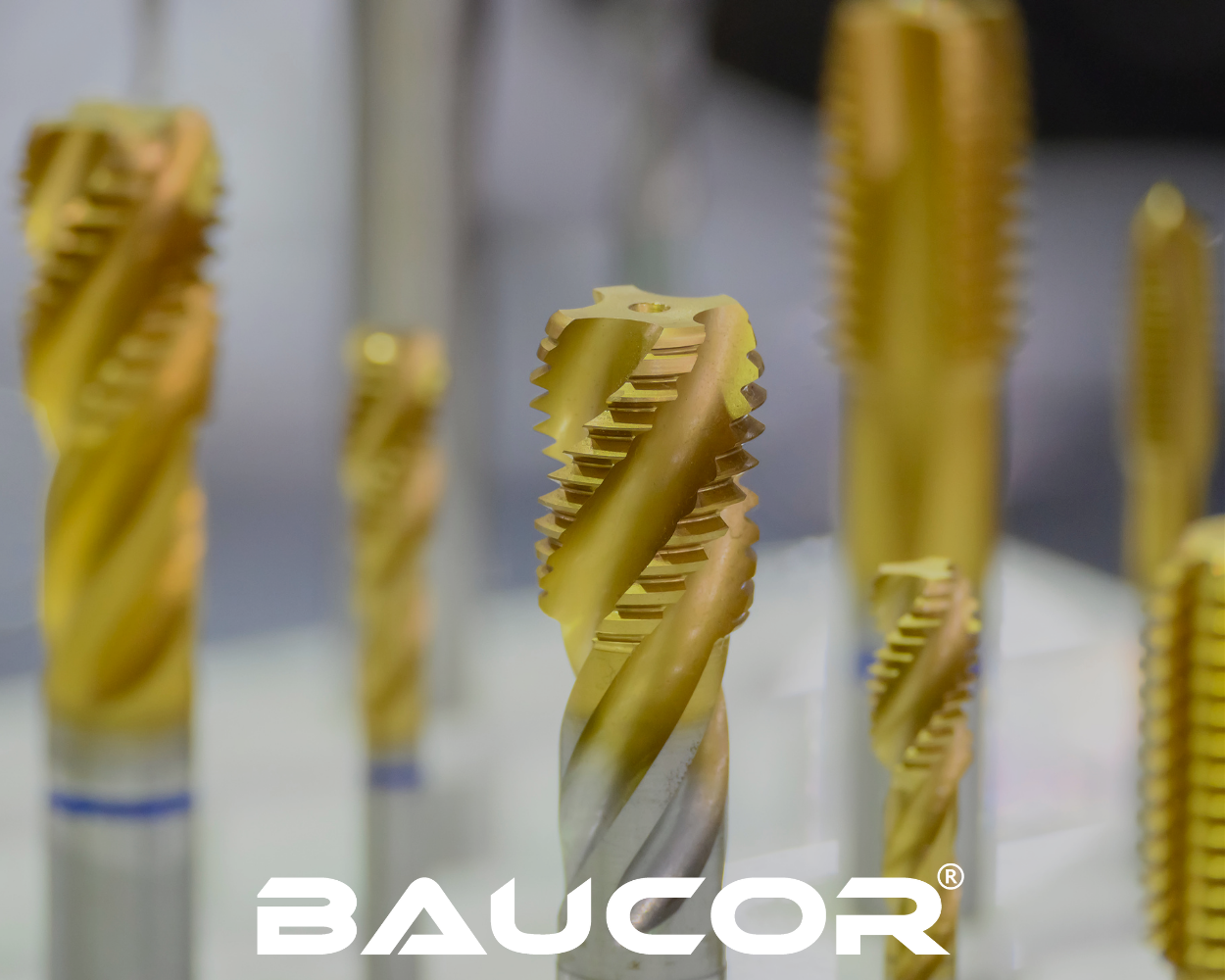

Common Mistakes to Avoid in Tap Fabrication When Tapping Fabricated Holes

Irvine, California, U.S.A - Mannheim, Germany

Avoid These Common Pitfalls in Tap Fabrication for Stronger Threads

Tapping fabricated holes is a crucial process, which in turn ensures fasteners fit correctly and offer a durable, long-lasting finish. Unfortunately, the avoidable errors that many professionals and manufacturers commit while making tappings result in low-quality threadings, breakage of tools, and loss of production time. The best way to understand how to enhance efficiency, tool life, and overall quality in tapped holes is to learn from the most common mistakes. The common mistakes to avoid in tap fabrication when tapping fabricated holes are:

1. Wrong Choice of Tap

One of the most common blunders in manufacturing taps is applying the wrong kind of tap or coating for specific materials and the application. Separate materials require respective types of tap, coatings, and geometries. For instance, using standard tap for metallic materials may trigger extreme wear with breakage for the same process. The appropriate factors to focus on are:

The hardness and toughness of materials
Type of thread: be it fine/ coarse
Needed hole depth; required tap Geometry

A proper tap selection improves longevity and ensures high-quality threads, which reduces defects and rework.

2. Inadequate Hole Size Preparation

One of the common misconceptions in tap manufacturing is that the standard drill size is always appropriate. Wrong-sized holes, whether too large or too small, can influence the quality of the tapped threads. If the hole is too small, it increases the stress of the tap and makes it break easily. In case it is too large, the threads will be weak and unable to give proper fastening strength.

This can be avoided by using the right drill charts, taking into account thread percentage engagement, and using precision drilling techniques.

3. Failure to Use Proper Lubrication

Lubrication is a critical aspect in tap manufacturing, especially when working with harder metals. Inadequate lubrication leads to friction buildup, which causes premature tool wear and poor quality of the thread. Using the right tapping fluid ensures:

Reduced heat buildup
Smooth cutting action
Longer tap life

Water-soluble lubricants are suitable for general applications while high-viscosity oils are the best for the tougher materials.

4. Tapping with Tap Misaligned

When tapping with a misaligned tap, one gets unevenly or damaged threads. This usually occurs when one is hand-tapping or employing less accurate tapping equipment. Misaligned taps cross-thread the nut, making the fastener unserviceable.

To avoid the problem, be sure that
The workpiece is clamped correctly
Guides or high-precision tapping machines are employed for tapping
The tap is perpendicular to the work surface

Investment in high-quality tap design services can reduce the risk of misalignment by ensuring optimal tool geometries and precision in the fabrication process.

5. Applying Excessive or Insufficient Torque

The amount of torque applied during tapping is critical. Too much force can break the tap, especially in harder materials. On the other hand, insufficient force may result in incomplete threads or rough finishes.

This tap will use a tapping machine having torque control to prevent breakage and ensure tight threads. The motion for hand tapping should be steady and controlled with frequent reversing to remove the chips.

6. Chip Extraction Ignored

Chip accumulation within the hole is the main reason for tap breakage. The compacted chip within the holes of the tapped hole during manufacturing causes tap jamming and eventual breakage. Strategies for correct chip evacuation involve:

Using spiral point taps on through-holes
Spiral flute taps for blind holes
Use of compressed air or coolant for chip removal

Chip removal periodically allows the tap to work efficiently and thereby avoids cleanliness with un-interrupted threading.

7. Failure to Recondition and/or Replace Taps

Taps tend to deteriorate continuously with time. Most tap makers wait until a tap actually fails and, thus, the tendency is to put off replacement rather than inspecting regularly and replacing taps before failure and potential damage to the tool. Some of the signs of a worn tap are:

Increased torque requirement
Rough or incomplete threads
Chipping or dull cutting edges

Partnering with professional tap design services helps ensure that your tapping tools are engineered for durability and precision, reducing the need for frequent replacements.

8. Using Low-Quality Taps

Compromise on the quality of tap can lead to frequent failure and poor performance. High-quality taps made from carbide or high-speed steel, with proper coating, offer greater durability and accuracy. Spending a little more in premium taps specifically designed for material and application reduces downtime and gives better thread consistency.

9. Ignoring Tapping Speed as an Important Parameter

Incorrect tapping speed affects the quality of the threads and the lifespan of the tools. High speed creates heat; this leads to increased wear on the tool as well as generating rough threads. Low speeds will cause inefficient cutting and chip blocking.

Recommended speeds for tapping processes depend on material type and the specifications of taps. The highest consistency in automation is achieved in CNC tapping machines with adjustable controls for speed.

10. Skipping Thread Gauging and Inspection

After tapping, many manufacturers fail to conduct proper thread gauging, resulting in defective parts. Thread gauges verify dimensional accuracy and ensure that the tapped hole meets required tolerances.

Thread plug gauges for internal threads
Optical measurement systems for precision verification

This step prevents costly rework and ensures that all tapped holes meet design specifications.

Conclusion

Avoidance of common mistakes in tap fabrication enhances the efficiency, quality, and durability of threaded holes. Manufacturers can significantly reduce defects and tool failures by choosing the right tap, proper hole preparation, maintaining lubrication, and using precise alignment techniques. High-quality tap manufacturing and professional tap design services ensure optimal performance and long-term reliability. Addressing these common errors makes your tapping process more efficient, cost-effective, and highly accurate, which results in higher quality end products.
